2071-P

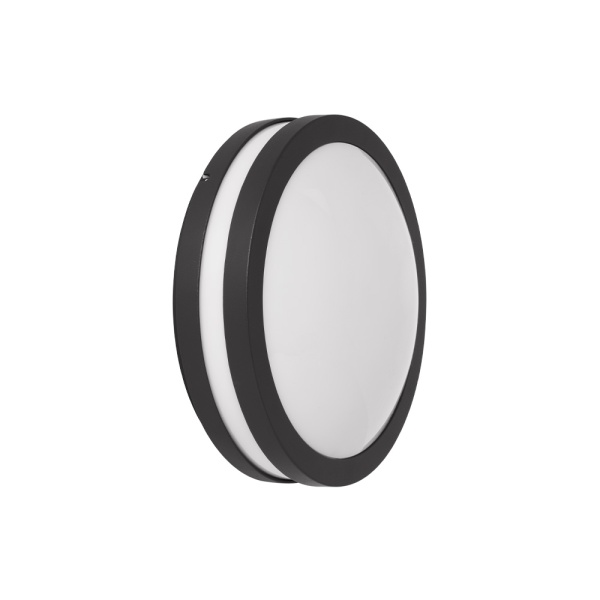

Wall surface luminaire for outdoor application, with frontal light projection. Cast aluminium body with the possibility of painting in different colors.

General Information

Application
Outdoor

General led color
Optional

Mounting Type
Wall Surface

IK
IK05

IP
IP54

CRI
80

UGR
avg. ≈ 21.7

Class
I

Shape
Circular

MacAdam
3

Measures
Ø260x95

Standards
EN 60598-1; EN 60598-2-1

Beam Angle
114.2º

Directives
RoHS; 2014/35/EU

Average Life
50000h

Light Source
E27 | LED

Light projection
Front light projection

Electrical Supply
220-240V AC~50/60Hz

Energy Efficiency
E

Luminous flux Maintenance
L90B10

Finishing

Diffuser

Opaline

documents

EC Declaration of Conformity Technical Data Assembly Instructions

Referências

Length (mm)
Ø260x95

Finishing
Black
Graphite
Gray
White

Diffuser
Opaline

LED color
3000K
4000K
Light source not included
