2029

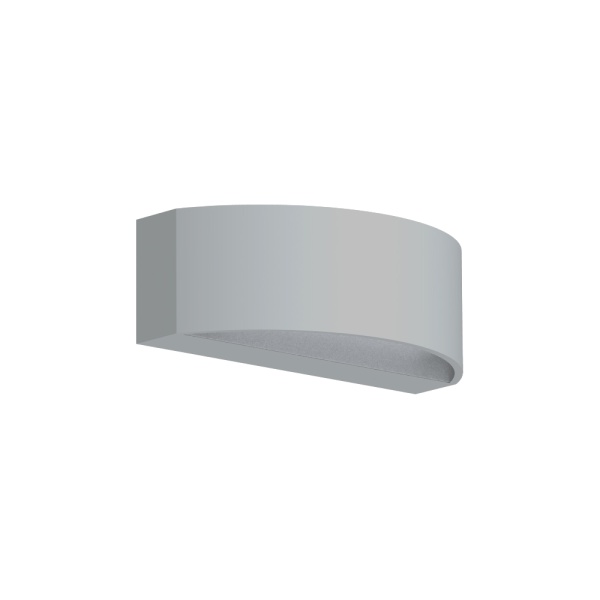

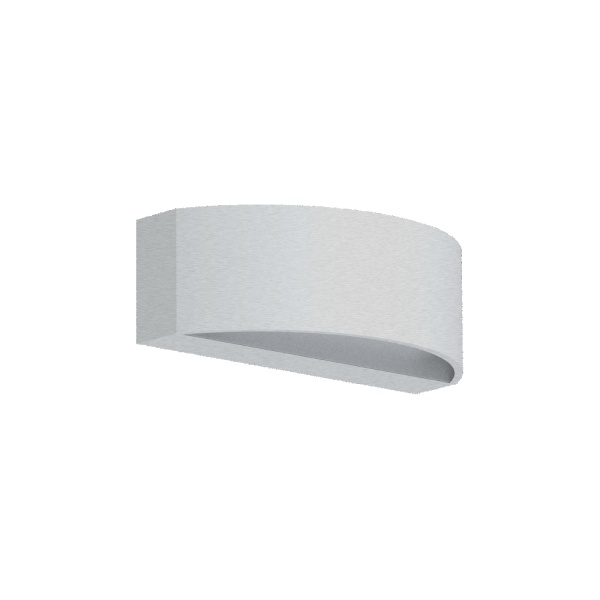

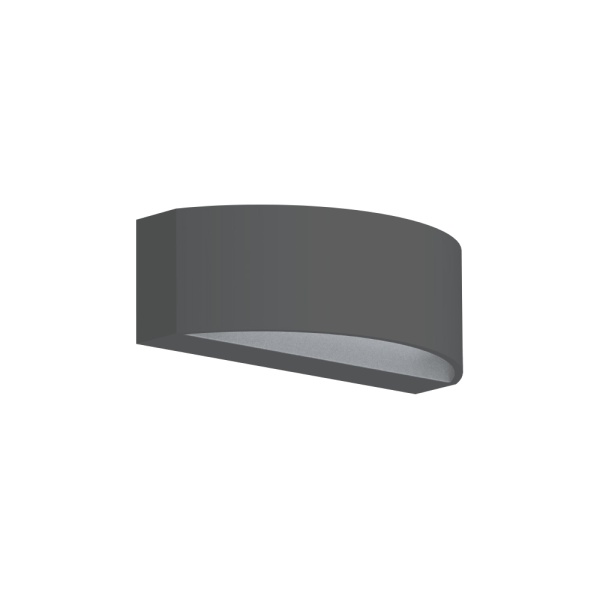

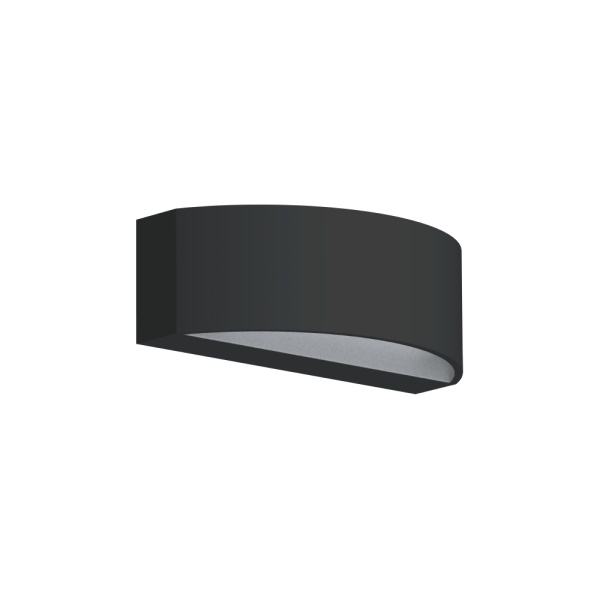

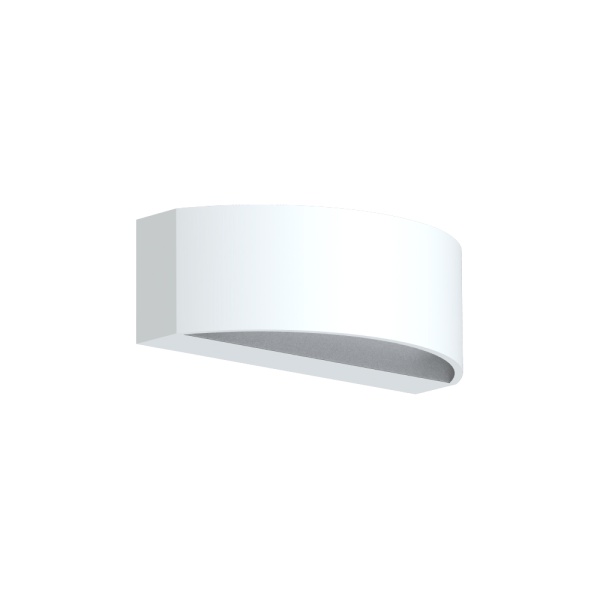

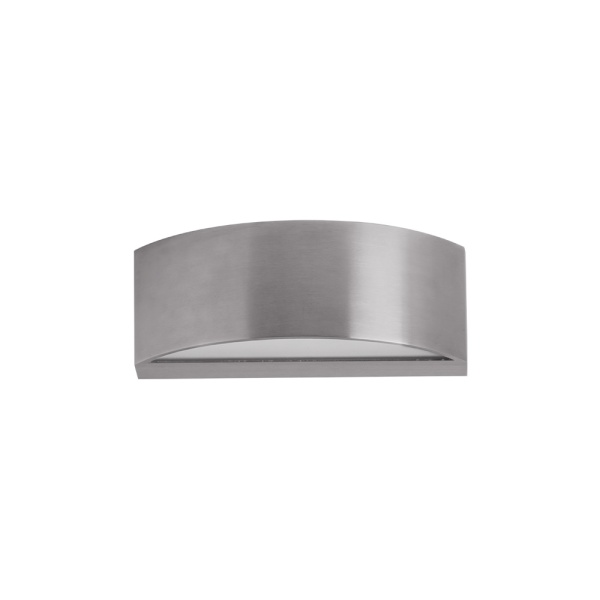

Wall surface luminaire for outdoor application, with downwarn and upward light projection. Brushed or painted 316 stainless steel body. Protective glass included. Incorporated driver.
General Information
Application
Outdoor
Outdoor
General led color
Optional
Optional
Mounting Type
Wall Surface
Wall Surface
IK
IK07
IK07
IP
IP54
IP54
CRI
80 | 90
80 | 90
UGR
<22
<22
Class
I
I
Shape
Circular
Circular
Driver
Driver included
Driver included
MacAdam
3
3
Measures
262x123x108
262x123x108
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
Beam Angle
105º
105º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
72000h
72000h
Light Source
LED
LED
Light projection
Downward and upward light projection
Downward and upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
