2524

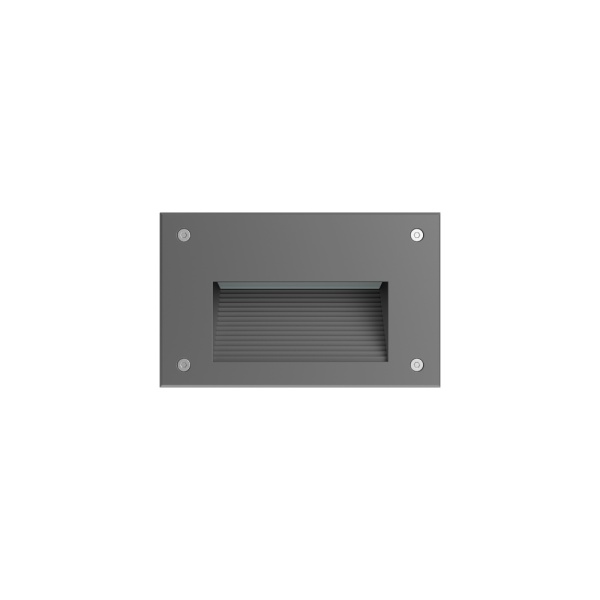

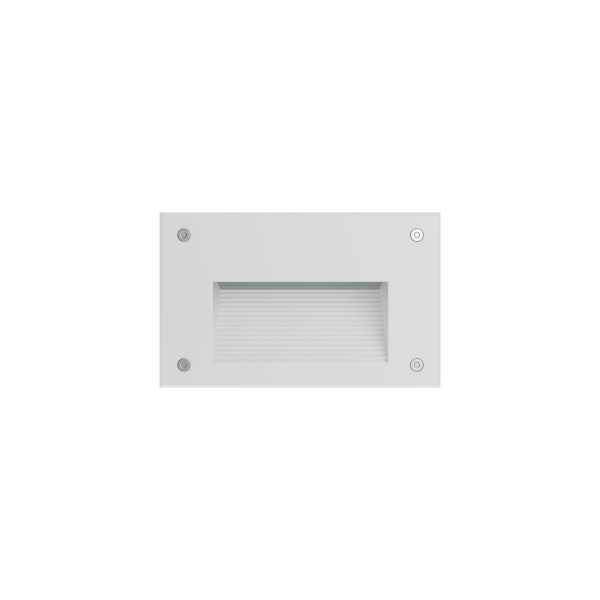

Recessed wall luminaire with trim for outdoor application, with front light projection. Outer rim in die-casted aluminium, painted. Injected aluminium body. Protective frosted glass included. Incorporated driver. Recessed box included.
General Information
Application
Outdoor
Outdoor
General led color
Optional
Optional
Mounting Type
Wall Recessed
Wall Recessed
IK
IK10
IK10
IP
IP65
IP65
CRI
>80
>80
Class
I
I
Shape
Rectangular
Rectangular
Driver
Driver included
Driver included
Measures
170x106x64 F154x93
170x106x64 F154x93
Standards
EN 60598-1; EN 60598-2-2; EN 62471 EN 55015; EN 61547; EN 61000-3-2; EN 61000-3-3
EN 60598-1; EN 60598-2-2; EN 62471 EN 55015; EN 61547; EN 61000-3-2; EN 61000-3-3
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
