2011

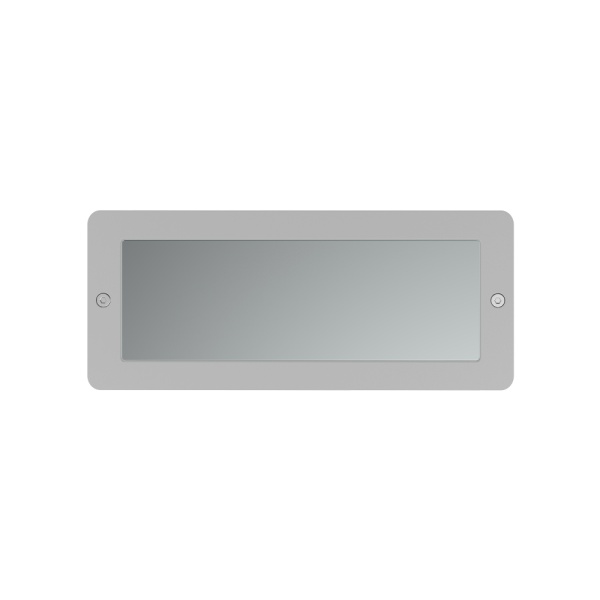

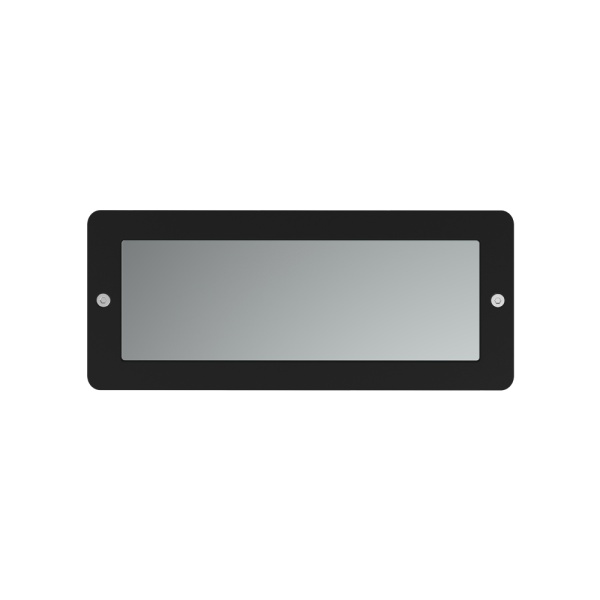

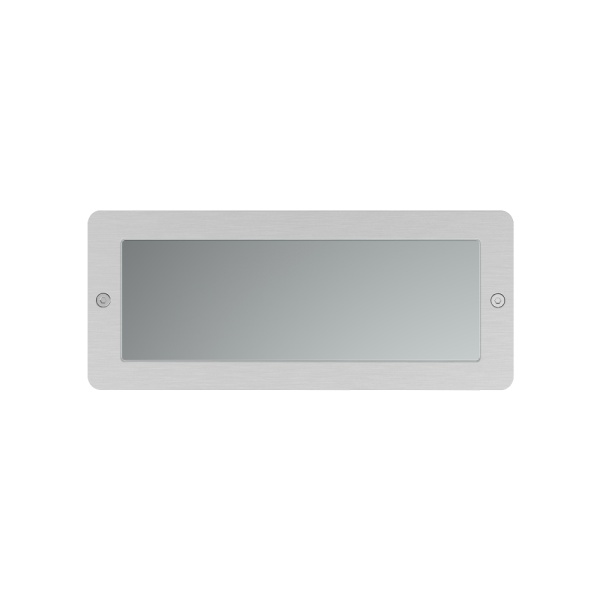

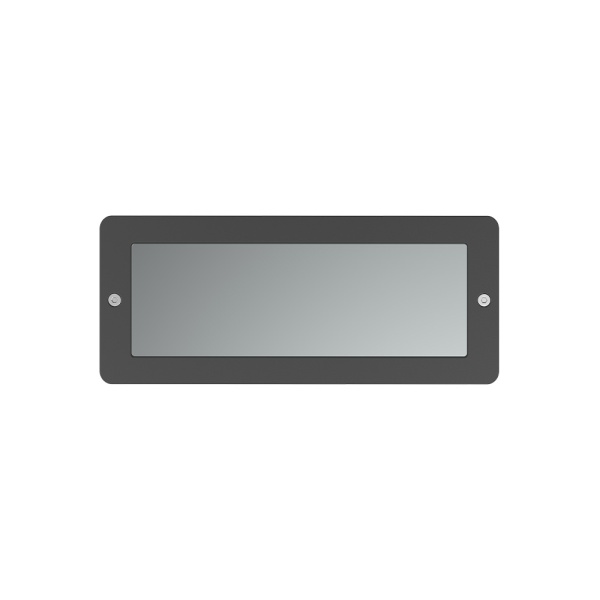

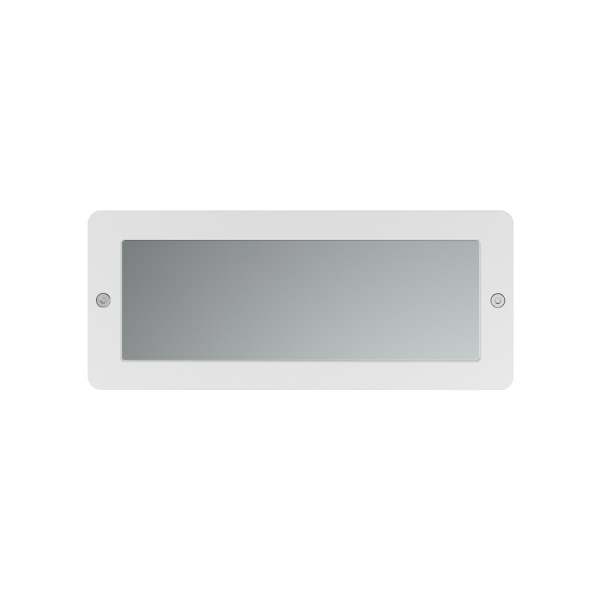

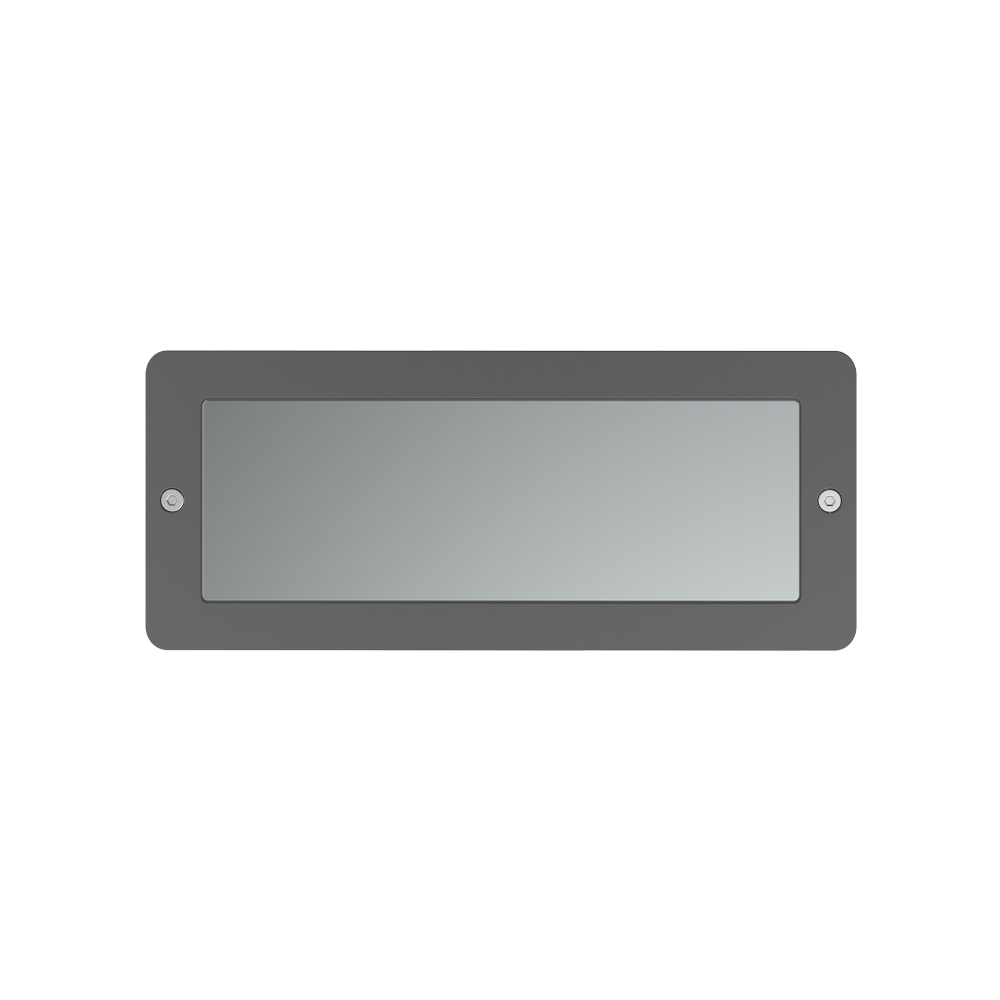

Recessed wall luminaire with trim for outdoor application, with front light projection. Stainless steel outer rim. Recessed box not included.

General Information

Application
Outdoor

General led color
Optional

Mounting Type
Wall Recessed

IK
IK05

IP
IP54

CRI
80 | 90

UGR
<22

Class
I

Shape
Rectangular

Driver
Driver included

MacAdam
3

Measures
237x100x78 F228x85

Standards
EN 60598-1;
EN 60598-2-2

Beam Angle
131º

Directives
RoHS; 2014/35/EU

Average Life
72000h

Light Source
E27 | LED Module

Light projection
Front light projection

Electrical Supply
220-240V AC~50/60Hz

Energy Efficiency
C

Luminous flux Maintenance
L90B10

Opaline

EC Declaration of Conformity Assembly Instructions
