5044

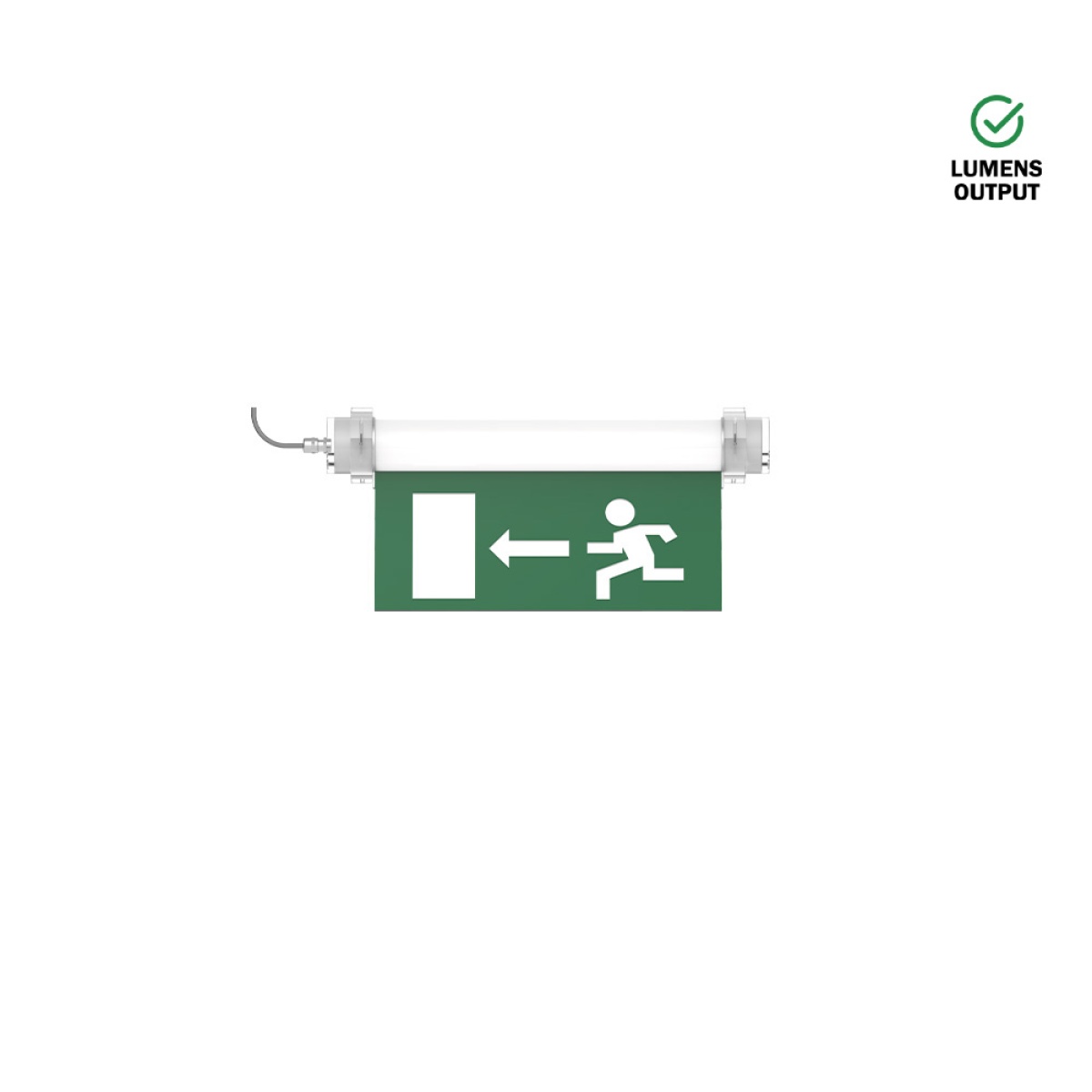

Ceilling or wall surface emergency luminaire for indoor application with downward light projection. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Wall Surface
Wall Surface
IK
IK04
IK04
IP
IP65
IP65
CRI
80 | 90
80 | 90
Kit
1H30 - Permanent (P) or Non-Permanent (NP)
1H30 - Permanent (P) or Non-Permanent (NP)
UGR
<22
<22
Class
I
I
Shape
Rectangular
Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
320 x 120
320 x 120
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3;
EN 60598-2-22;
EN 1838;
EN 62034
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3;
EN 60598-2-22;
EN 1838;
EN 62034
Beam Angle
107º
107º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
