4023

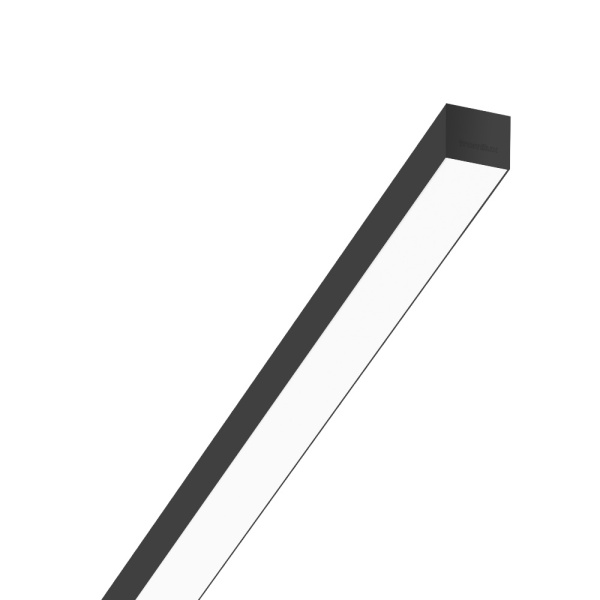

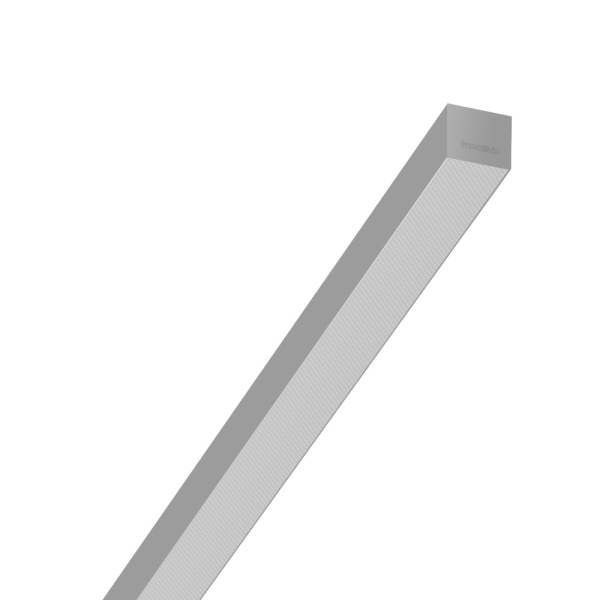

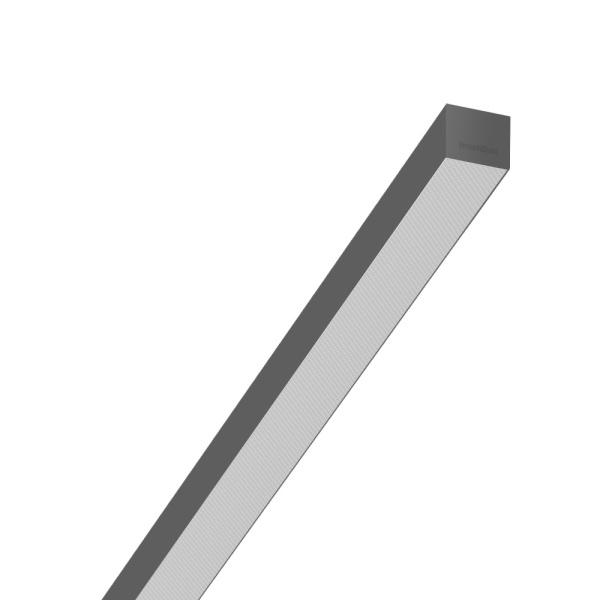

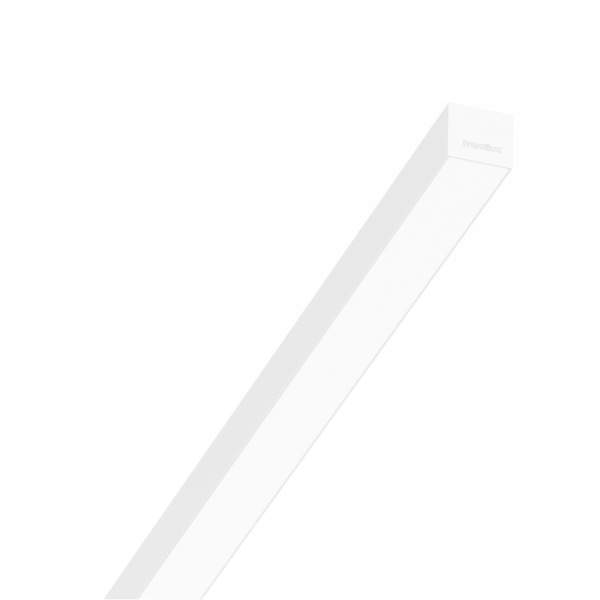

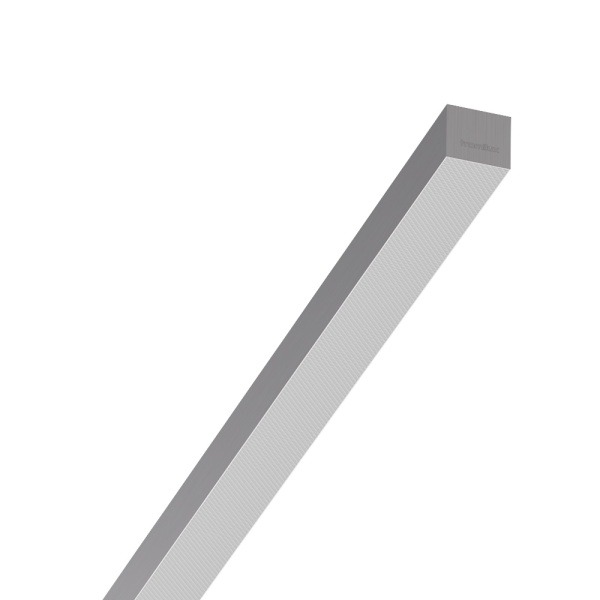

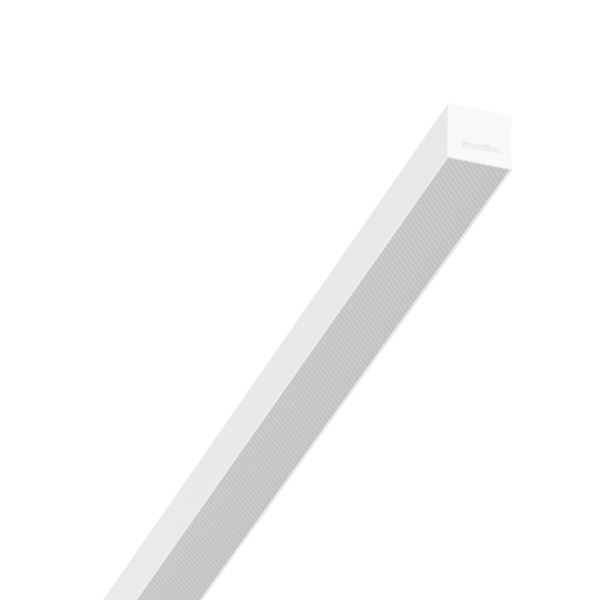

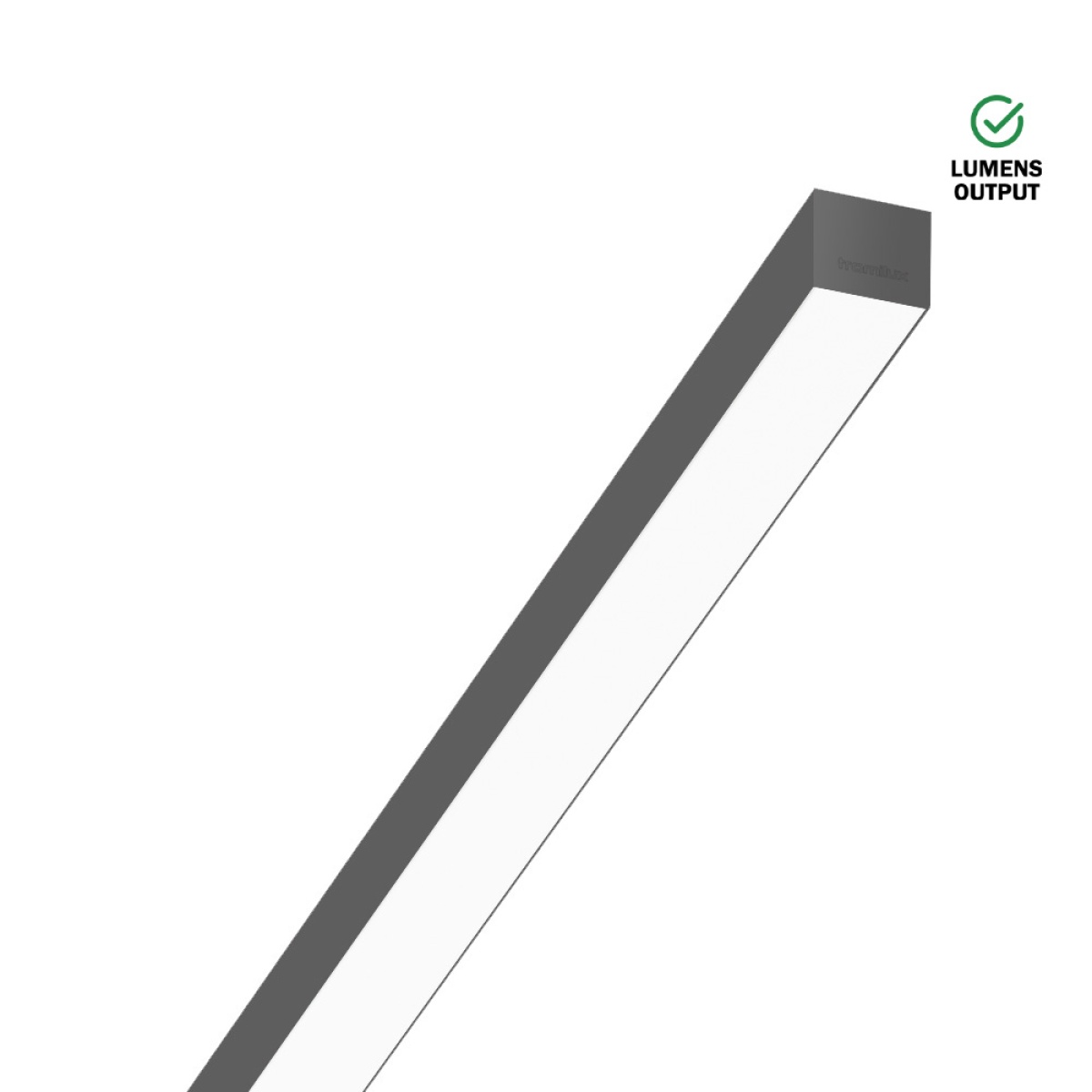

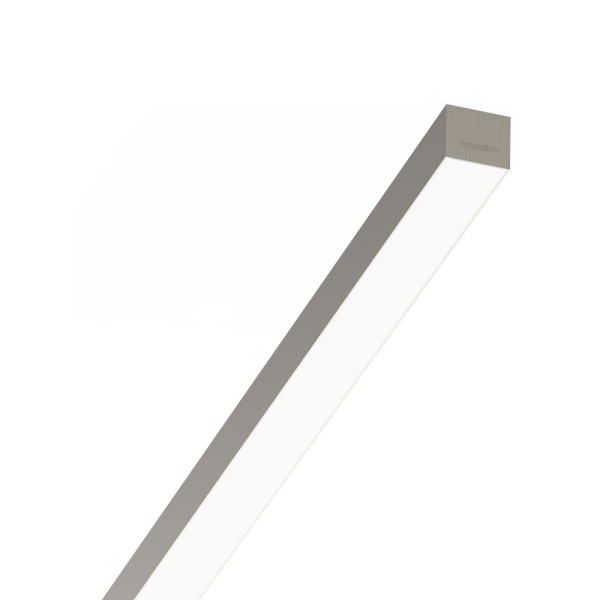

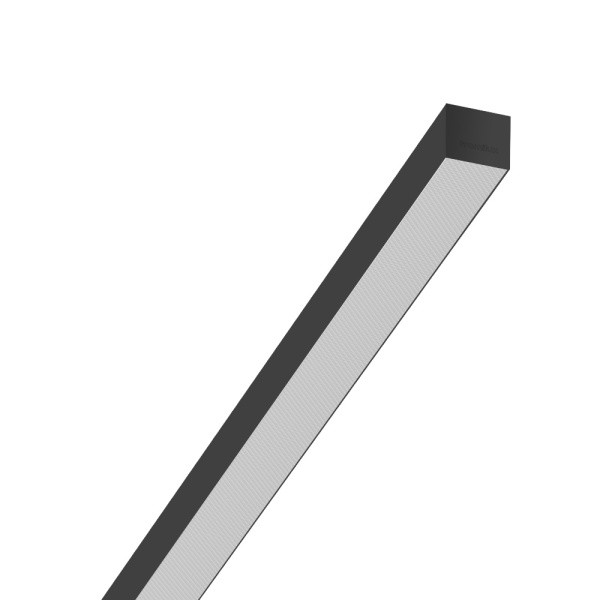

Wall surface luminaire for indoor application, with downward or upward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline or prismatic version. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Wall Surface
Wall Surface
IK
IK05
IK05
IP
IP40
IP40
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
Opal <21 | Prismatic <19
Opal <21 | Prismatic <19
Class
I
I
Shape
Rectangular
Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
100 x L x 90
100 x L x 90
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
110,7º
110,7º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward or upward light projection
Downward or upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
