4020

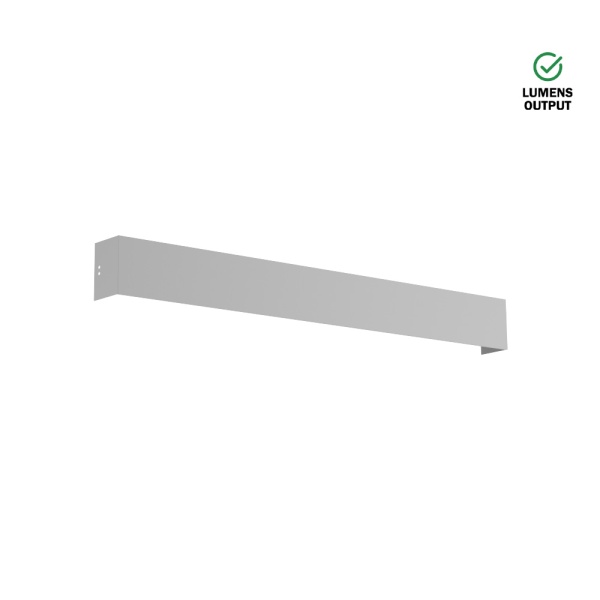

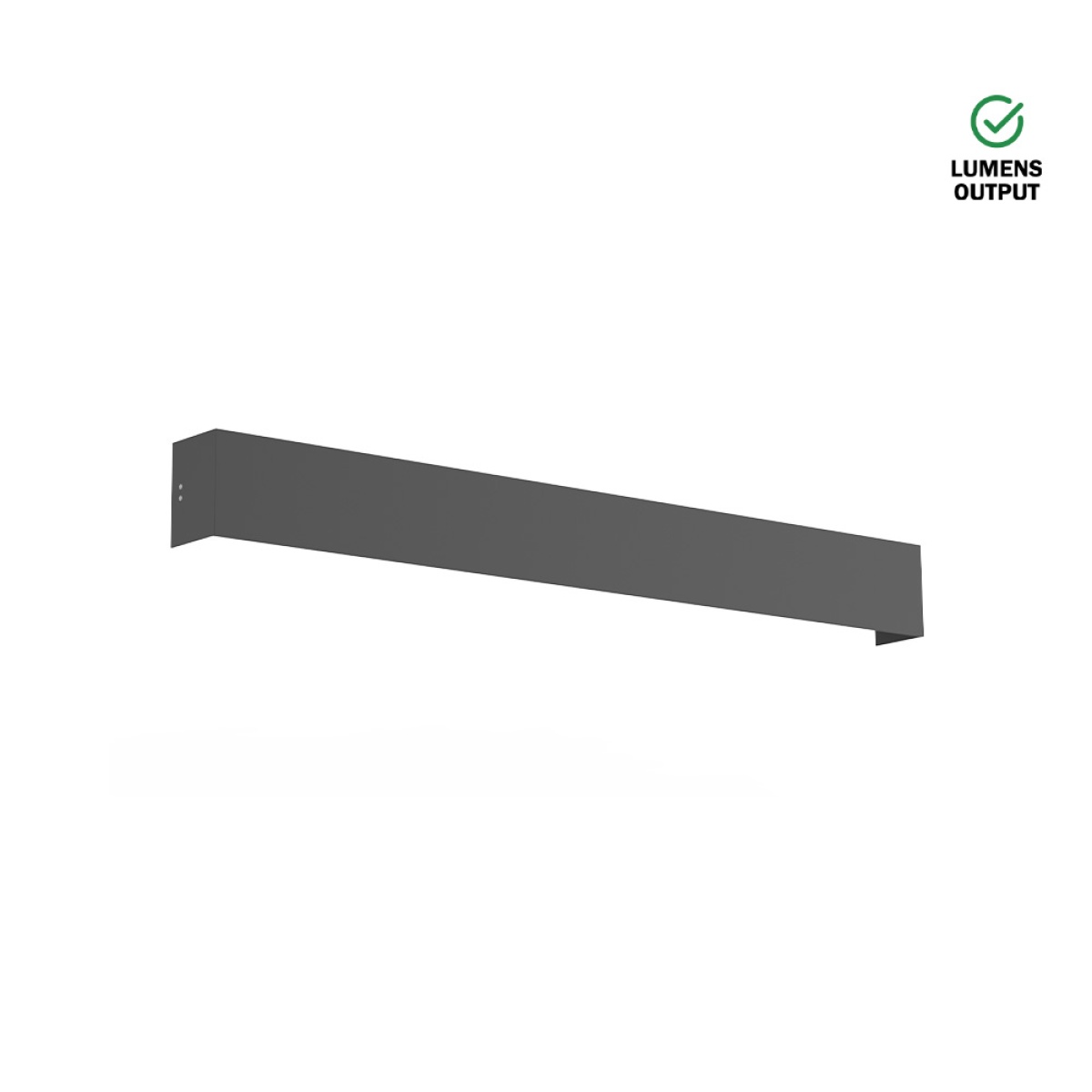

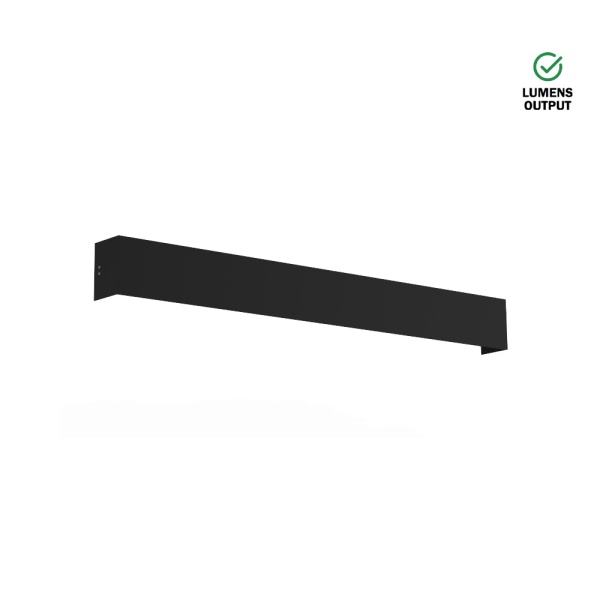

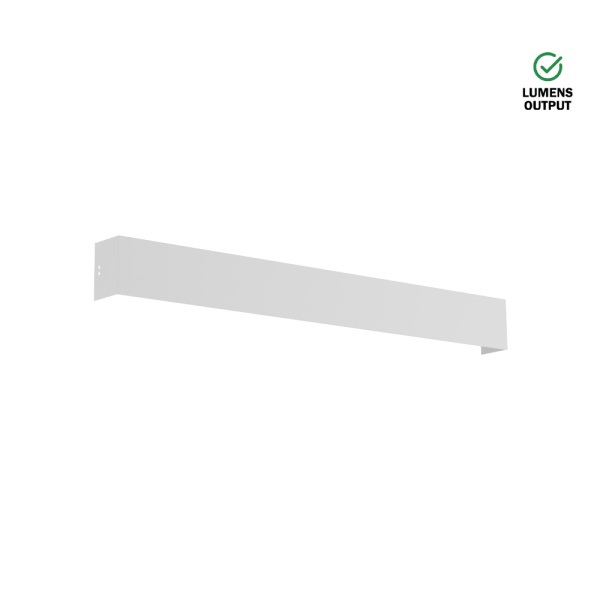

Wall surface luminaire for indoor application, with downward and upward light projection. Extruded aluminum body with the possibility of painting in different colors. Opaline diffuser. Incorporated driver.

General Information

Application
Indoor

General led color
Optional

Mounting Type
Wall Surface

IK
IK06

IP
IP40

CRI
80 | 90

UGR
<22

Class
I

Shape
Rectangular

Driver
Driver included

MacAdam
3

Measures
Lx110x80

Beam Angle
106,6º

Average Life
72000h

Light Source
LED Module

Light projection
Downward and upward light projection

Electrical Supply
220-240V AC~50/60Hz

Energy Efficiency
C

Luminous flux Maintenance
L90B10

Finishing

Diffuser

Opaline
