4005

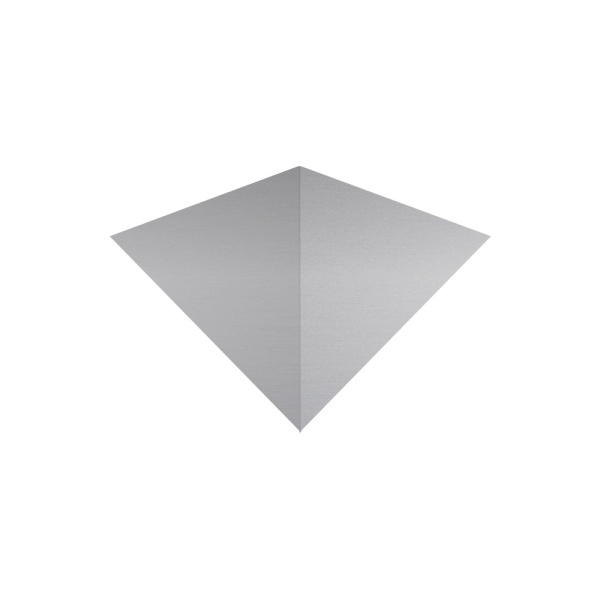

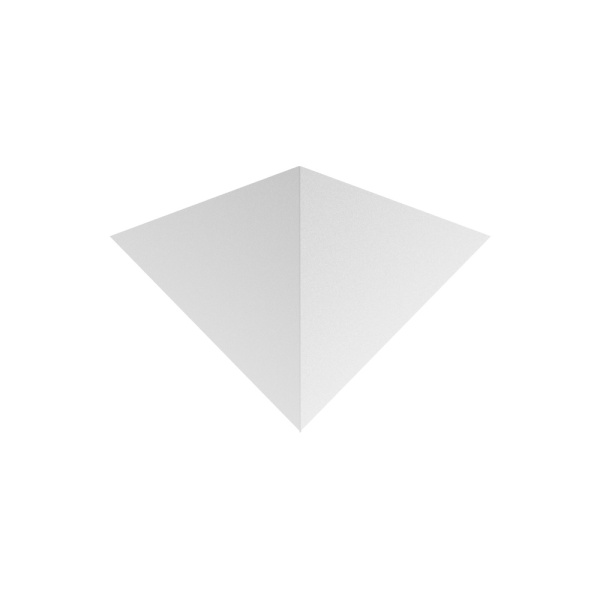

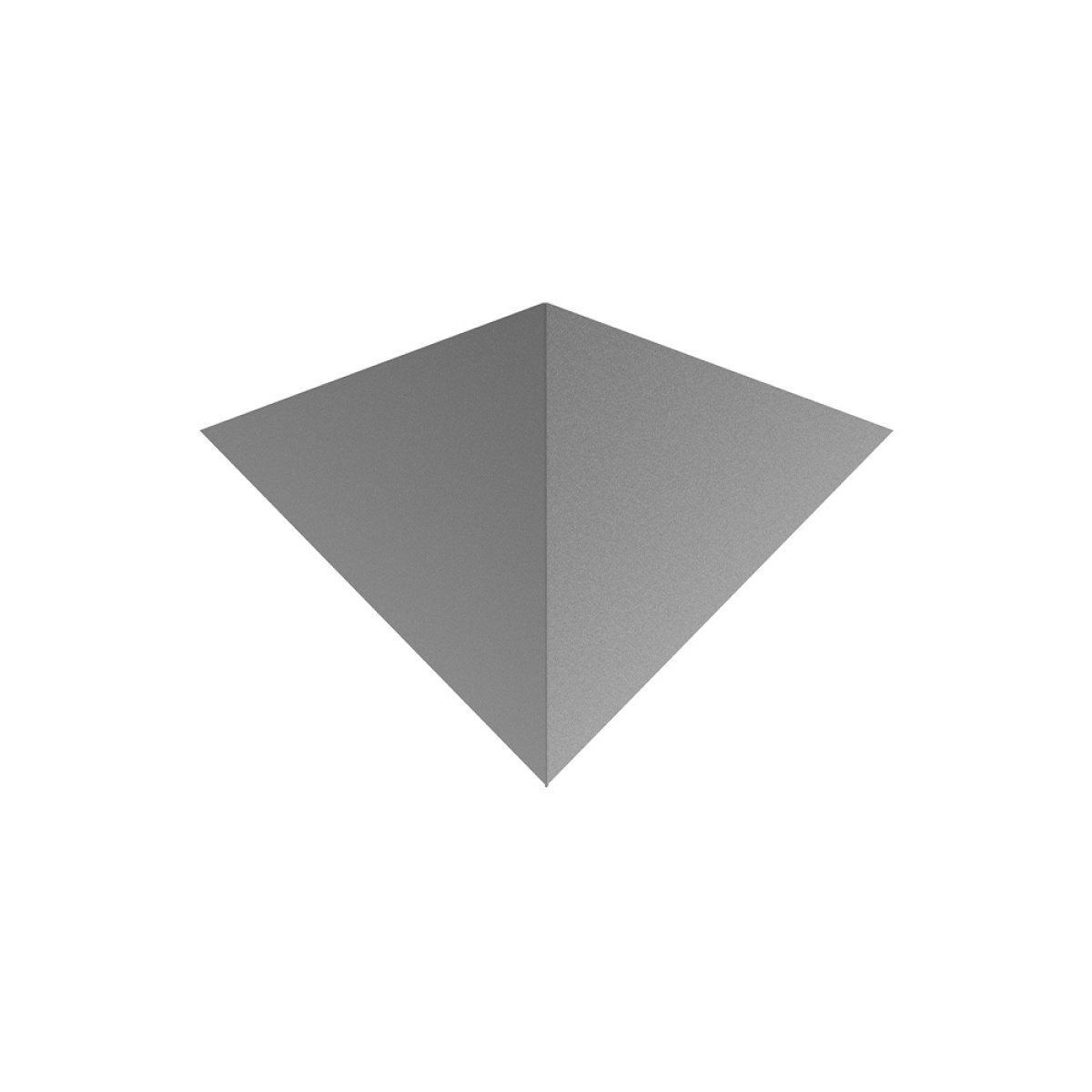

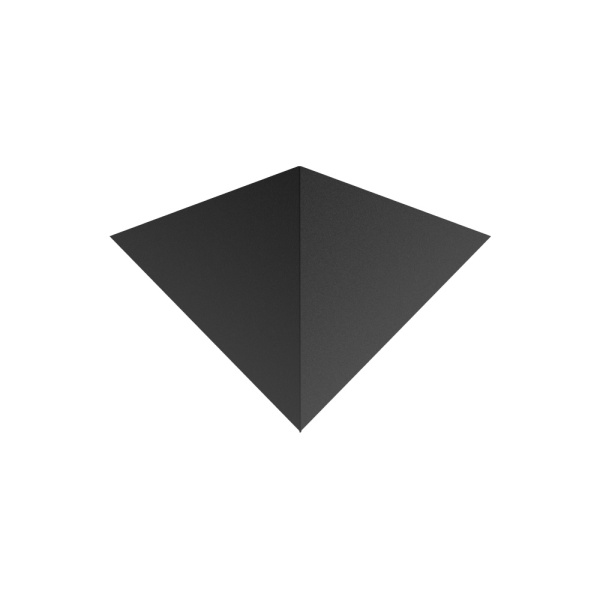

Wall surface luminaire for indoor application, with upward light projection. Body in stainless steel, brushed or painted. Diffuser in opaline acrylic. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Wall Surface
Wall Surface
IK
IK05
IK05
IP
IP20
IP20
CRI
80 | 90
80 | 90
UGR
<22
<22
Class
I
I
Shape
Triangular
Triangular
Driver
Driver included
Driver included
MacAdam
3
3
Measures
315x160x185
315x160x185
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
106,6º
106,6º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Upward light projection
Upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
