4077

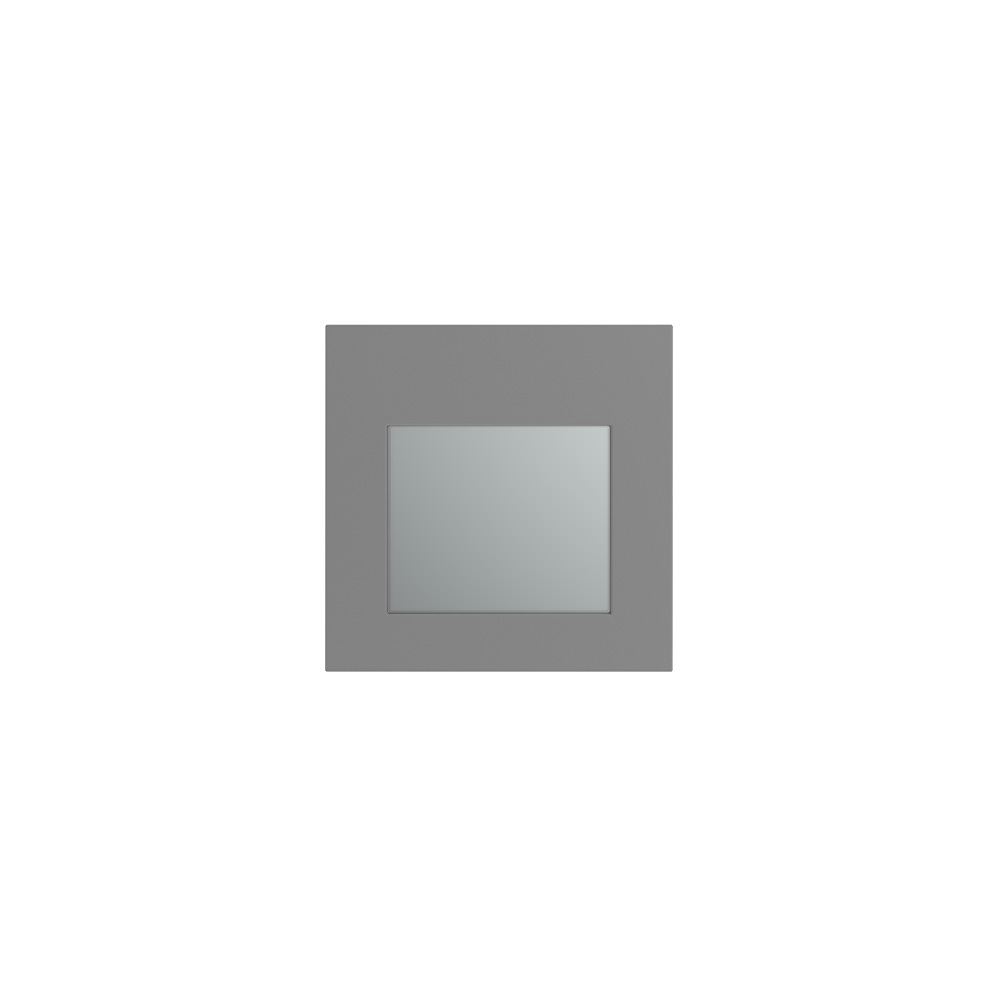

Recessed wall luminaire for indoor application, with frontal light projection. Trim in stainless steel brushed or painted. Galvanized steel plate body, painted. 4077 LED driver not Included for constant current | 4177 LED driver included.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Wall Recessed
Wall Recessed
IK
IK05
IK05
IP
IP43
IP43
CRI
>80
>80
UGR
<15
<15
Class
I
I
Shape
Square
Square
Driver
4077 LED driver not Included for constant current | 4177 LED driver included
4077 LED driver not Included for constant current | 4177 LED driver included
Measures
90x90x38 F80x80
90x90x38 F80x80
Standards
EN 60598-1:2015, EN 60598-2-2:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
EN 60598-1:2015, EN 60598-2-2:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
Beam Angle
50º
50º
Directives
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Front light projection
Front light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
