5098

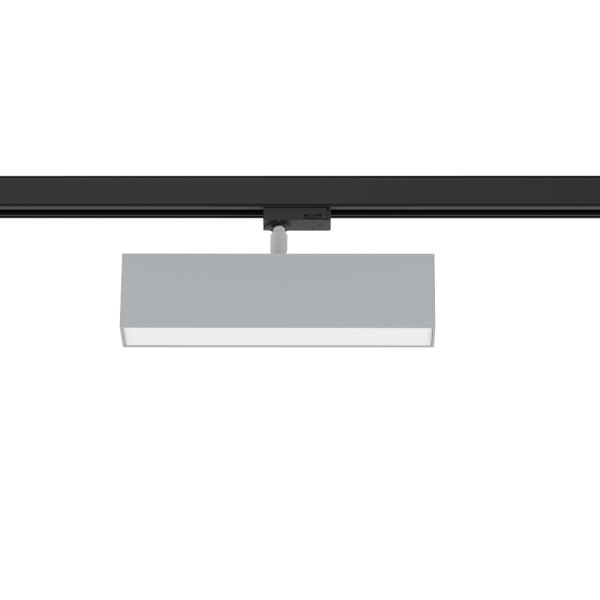

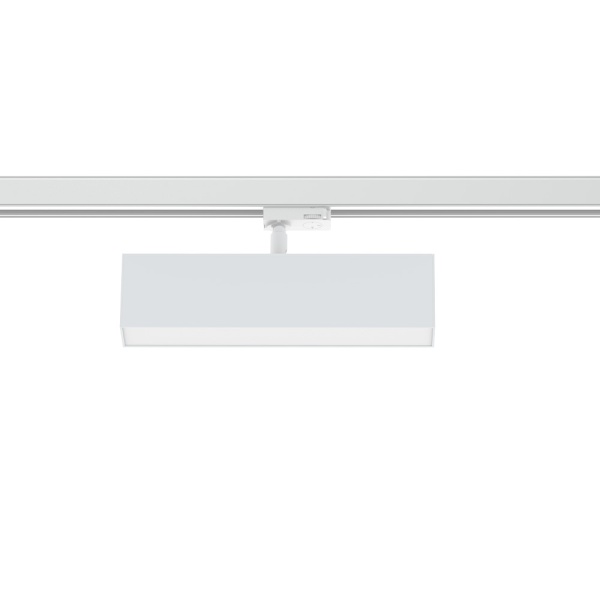

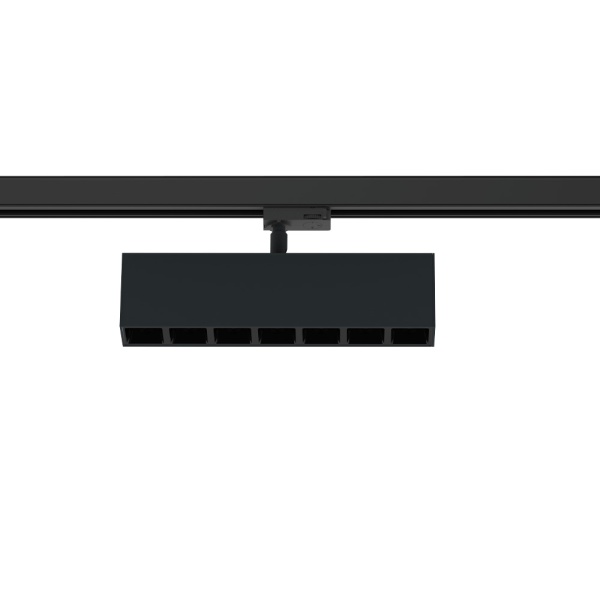

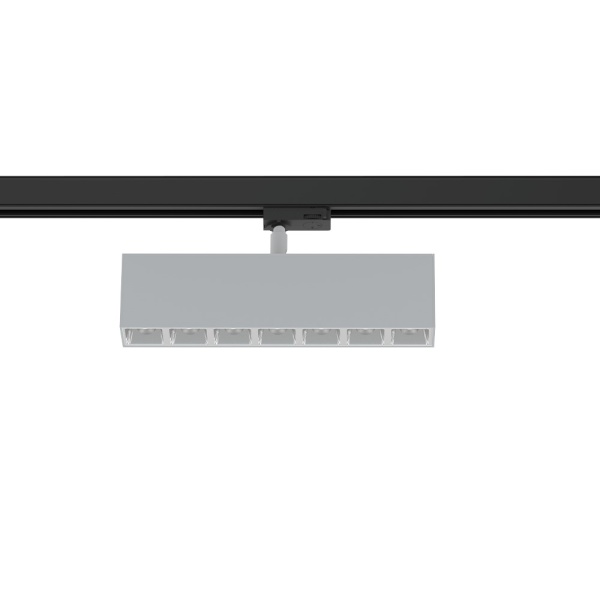

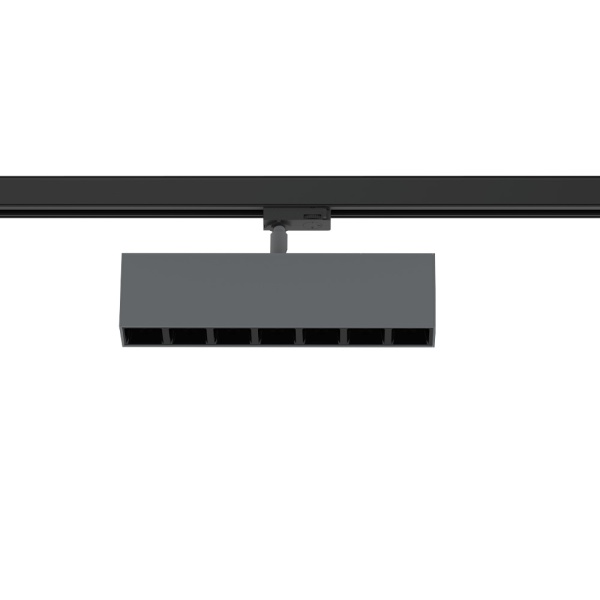

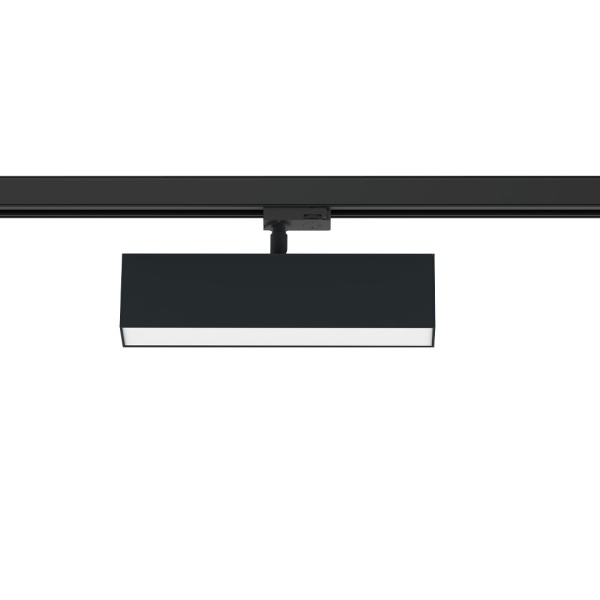

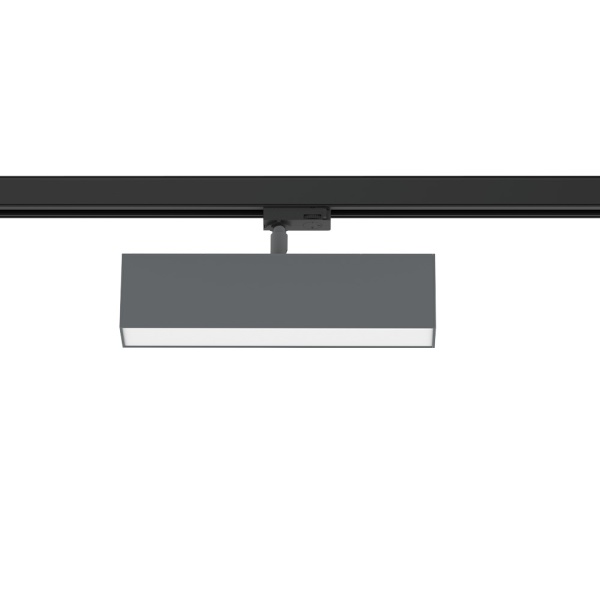

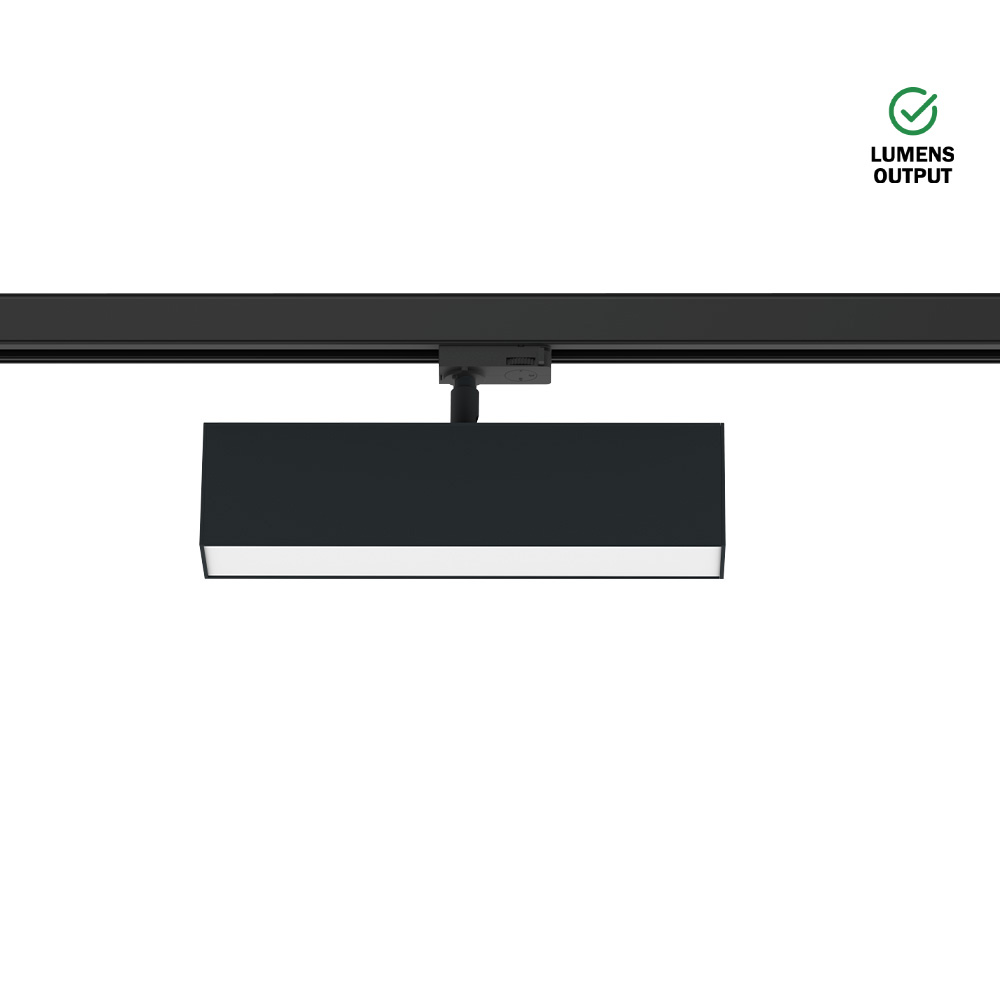

Projector for indoor 230V three-phase rail application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Opaline or transparent polycarbonate diffuser. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Spotlights & Tracks
Spotlights & Tracks
IK
IK03
IK03
IP
IP20
IP20
CRI
80 | 90
80 | 90
UGR
<22
<22
Class
I
I
Shape
Rectangular
Rectangular
MacAdam
3
3
Measures
47 x 75
47 x 75
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
72000h
72000h
Light Source
LED
LED
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
