5073

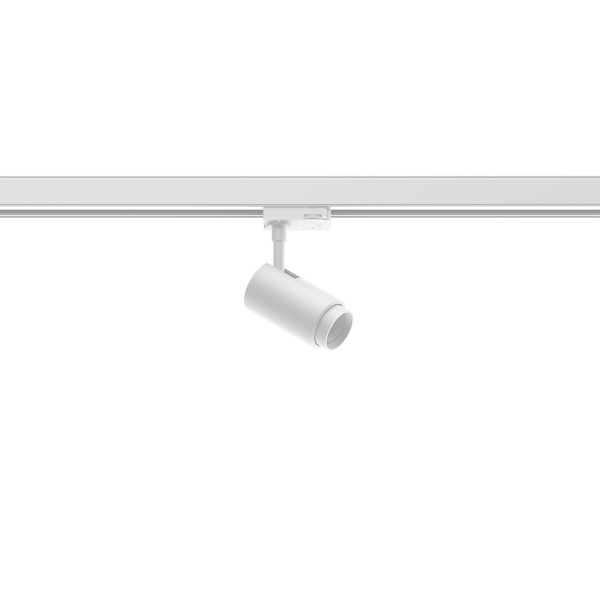

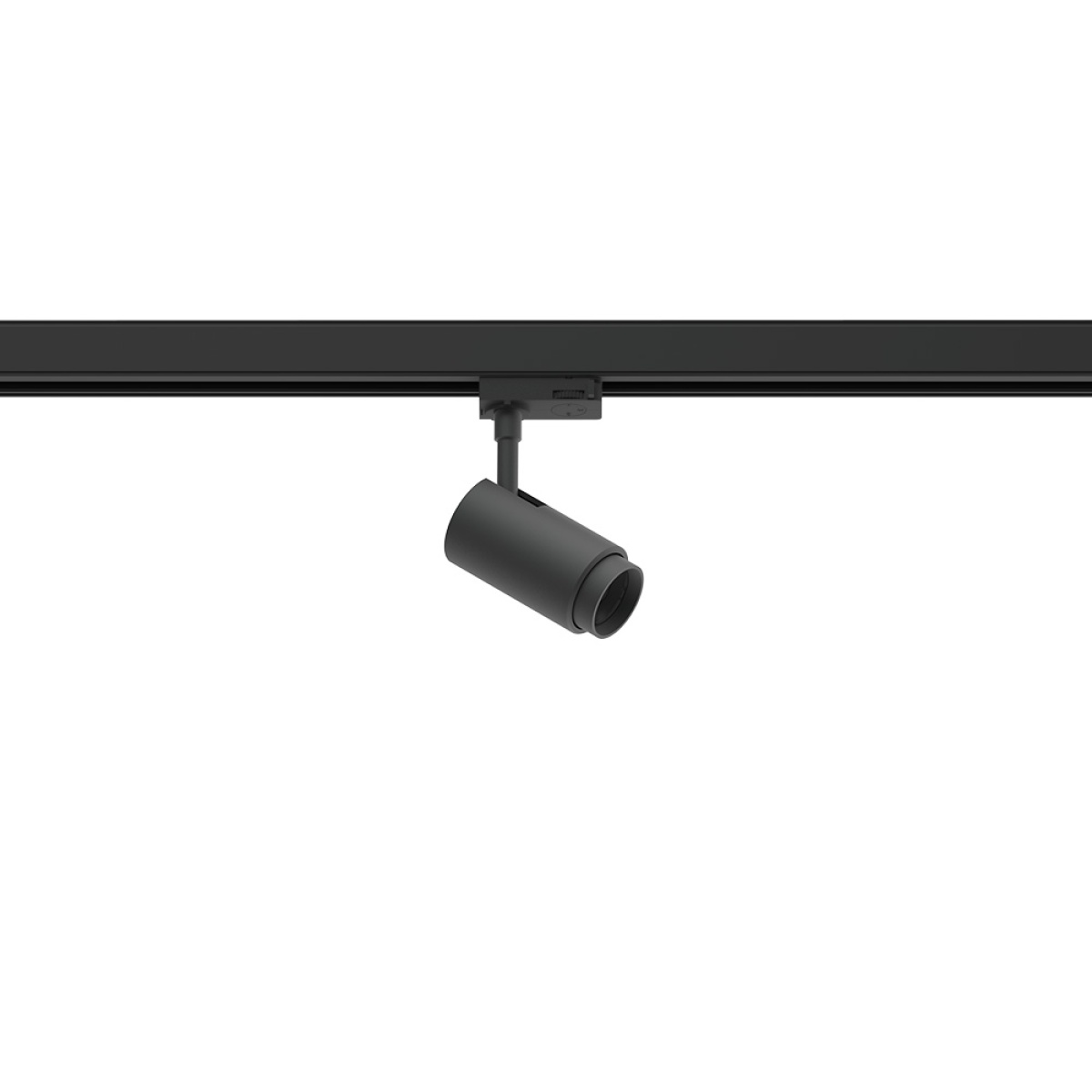

230V three-phase trunking projector for indoor use, with orientable light projection. Aluminum body with the possibility of painting in different colors. Remote driver. Smooth screw zoom system that allows the beam angle to be changed from 15 to 36 degrees, keeping the projection clean.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Spotlights & Tracks
Spotlights & Tracks
IK
IK03
IK03
IP
IP20
IP20
CRI
90
90
Class
I
I
Shape
Circular
Circular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
Ø46x86.1 | Ø57x143.1
Ø46x86.1 | Ø57x143.1
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
ZOOM 15º a 36º
ZOOM 15º a 36º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
