5072

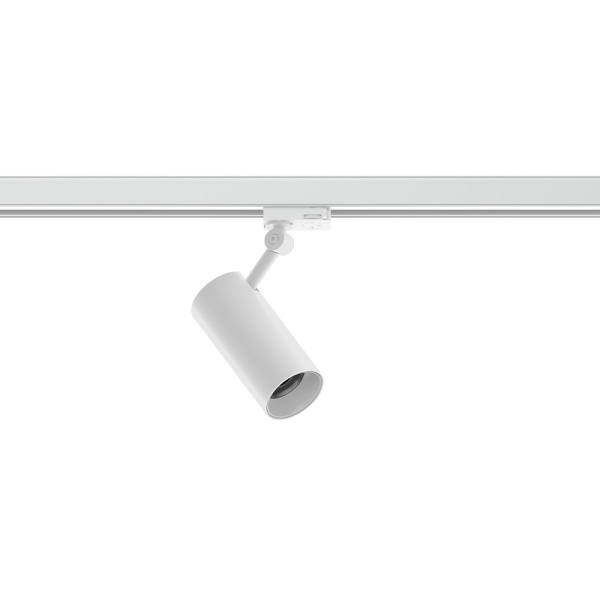

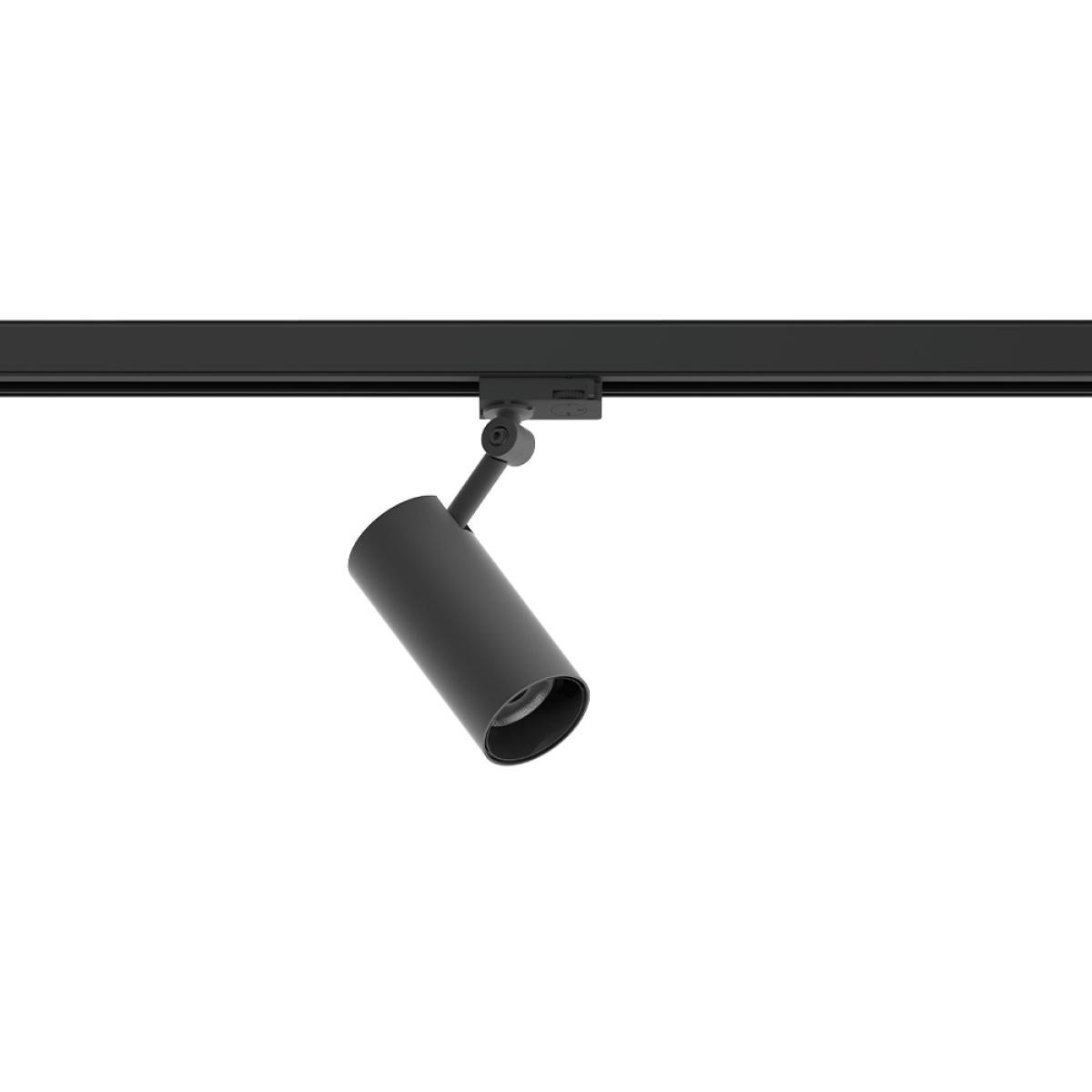

230V three-phase rail projector for indoor use, with adjustable light projection. Two types of adjustable orientation. Aluminium body can be painted in different colours. Built-in driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Spotlights & Tracks
Spotlights & Tracks
IK
IK03
IK03
IP
IP20
IP20
CRI
90
90
UGR
<19
<19
Class
I
I
Shape
Circular
Circular
MacAdam
2
2
Measures
Ø 65,8 x 140
Ø 65,8 x 140
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
34º
34º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
50000h
50000h
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
E
E
Luminous flux Maintenance
L80B20
L80B20
