5068

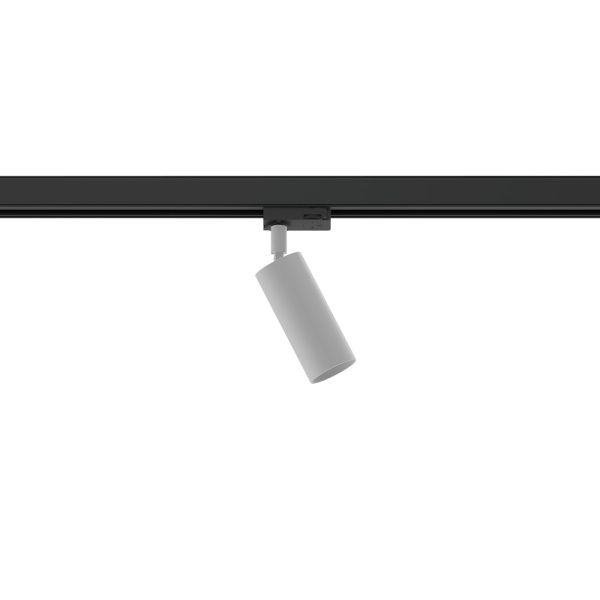

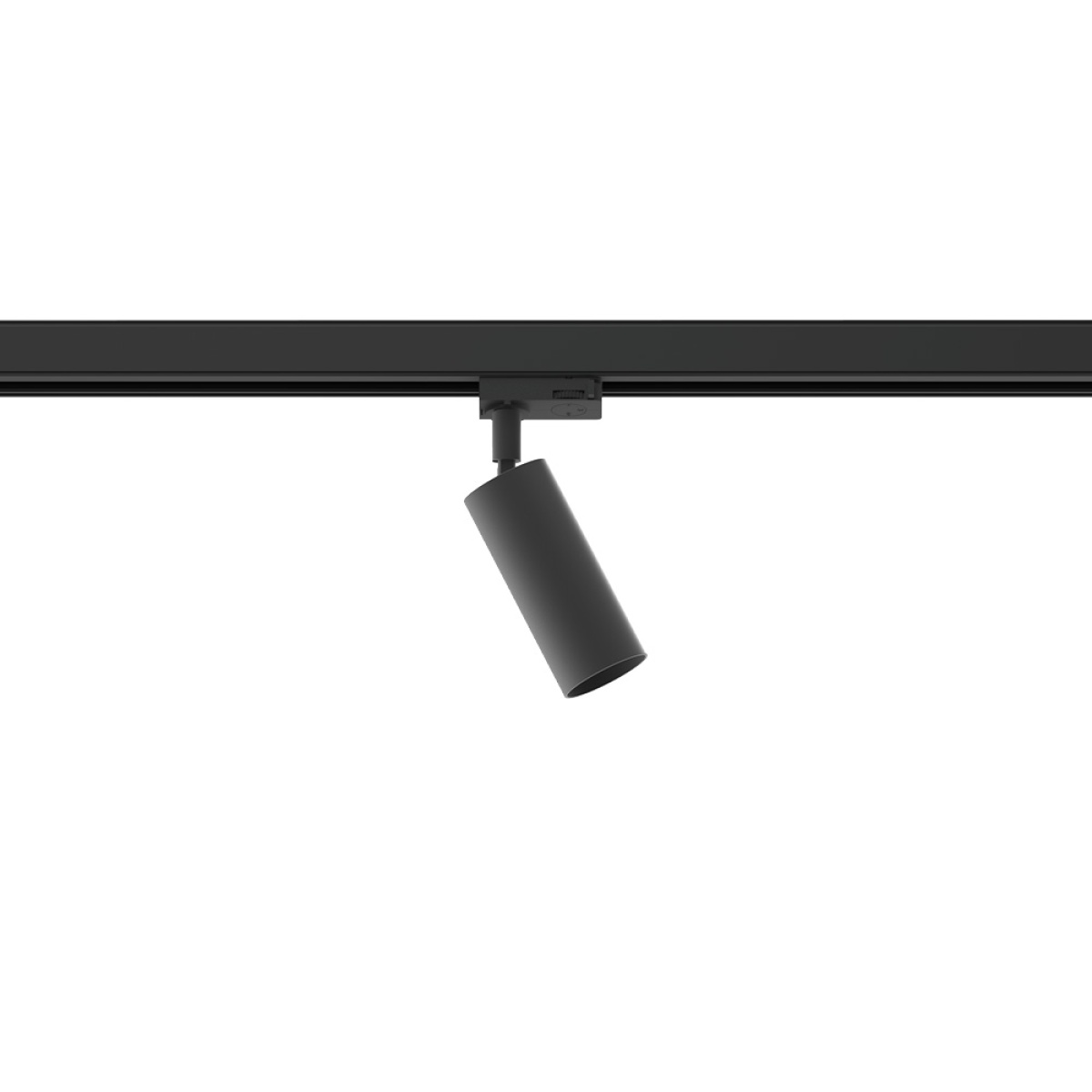

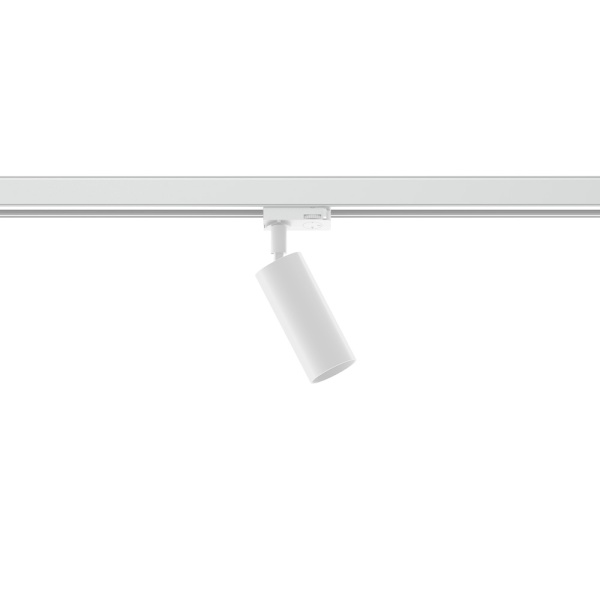

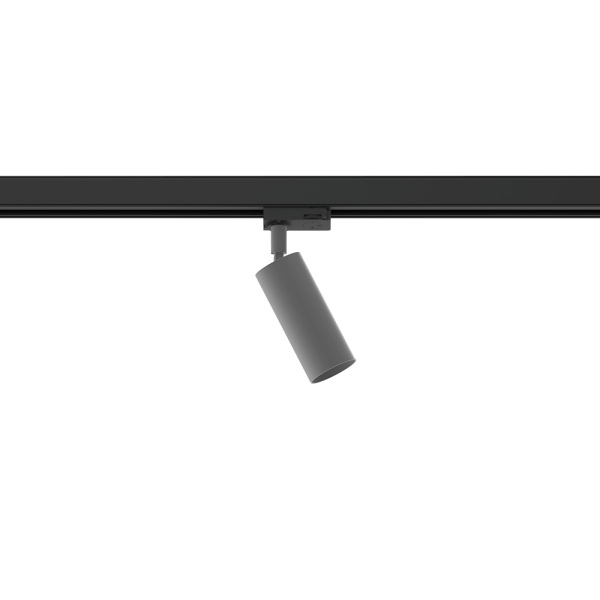

230V three-phase trunking projector for indoor use, with adjustable light projection. Aluminium body that can be painted in different colours. Built-in driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Spotlights & Tracks
Spotlights & Tracks
IK
IK03
IK03
IP
IP20
IP20
CRI
80
80
Class
I
I
Shape
Circular
Circular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
Ø 38
Ø 38
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
50.000h
50.000h
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
E
E
