5514

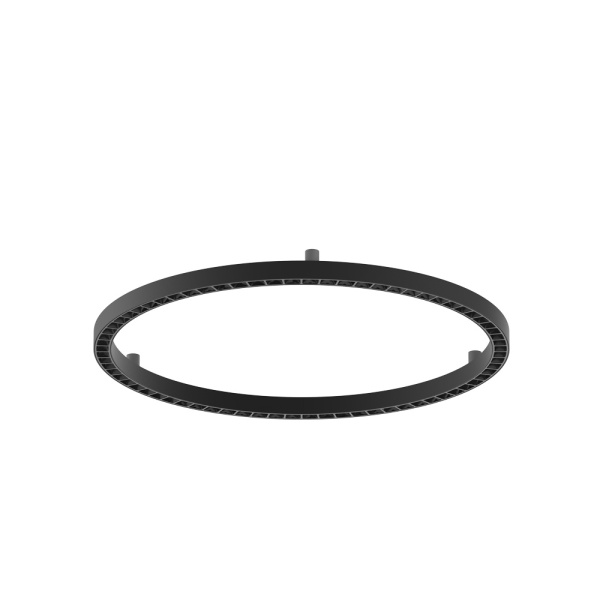

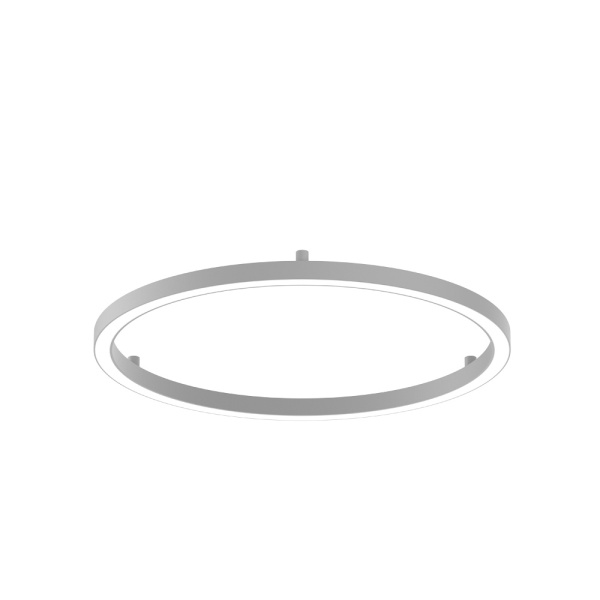

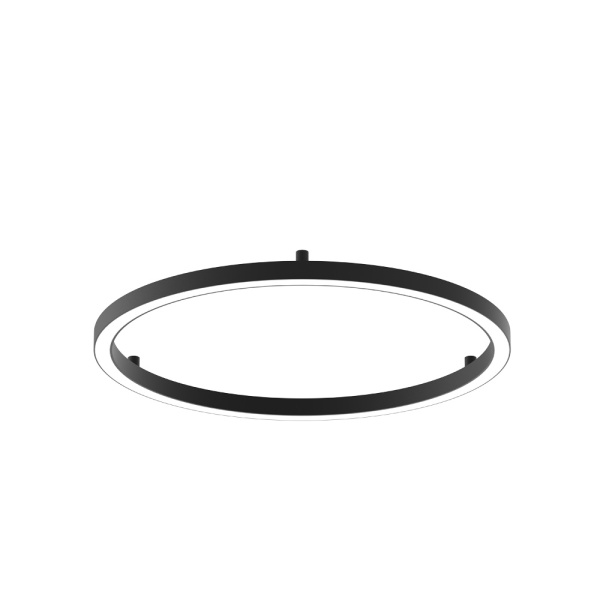

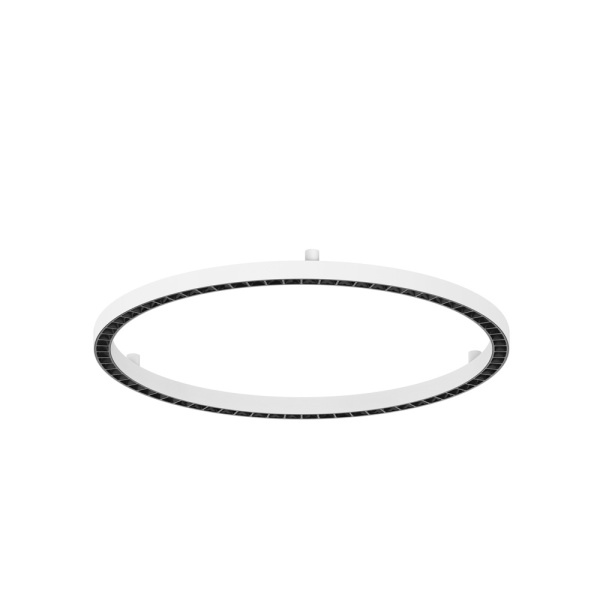

Surface luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK03
IK03
IP
IP20
IP20
CRI
80 | 90
80 | 90
UGR
Prismatic <19
Prismatic <19
Class
I
I
Shape
Circular
Circular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
Ø470x30; Ø670x30; Ø950x30; Ø1250x30; Ø1500x30; Ø2000x30; Ø2500x30; Ø3000x30; Ø3500x30; Ø605x30; Ø802x30; Ø1200x30
Ø470x30; Ø670x30; Ø950x30; Ø1250x30; Ø1500x30; Ø2000x30; Ø2500x30; Ø3000x30; Ø3500x30; Ø605x30; Ø802x30; Ø1200x30
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
106,6º
106,6º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
