4013

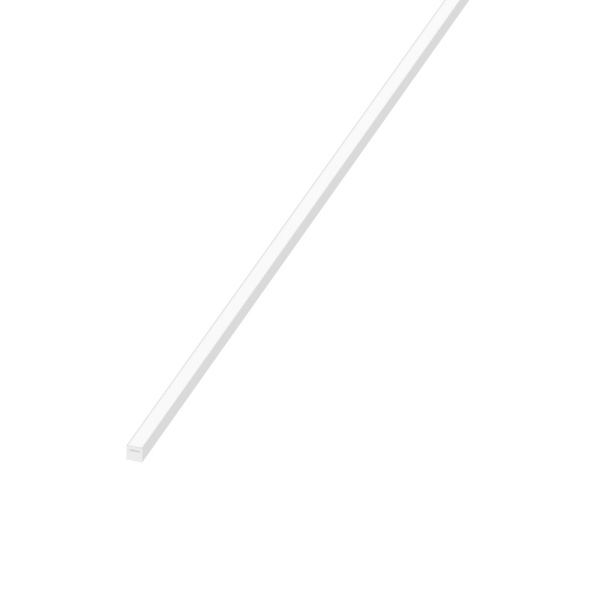

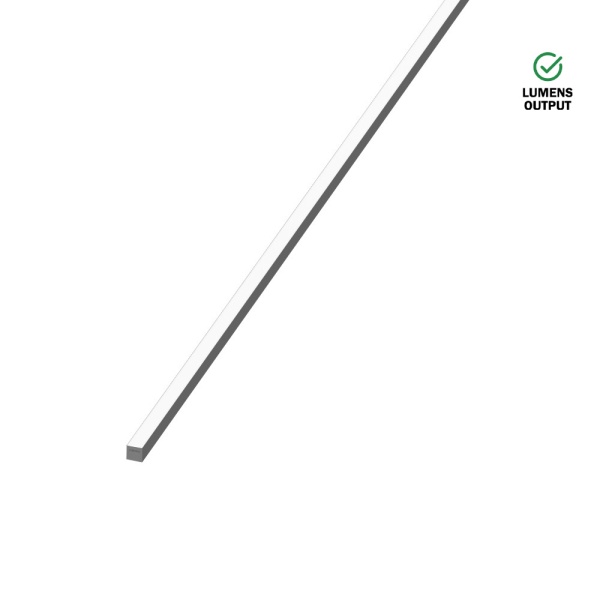

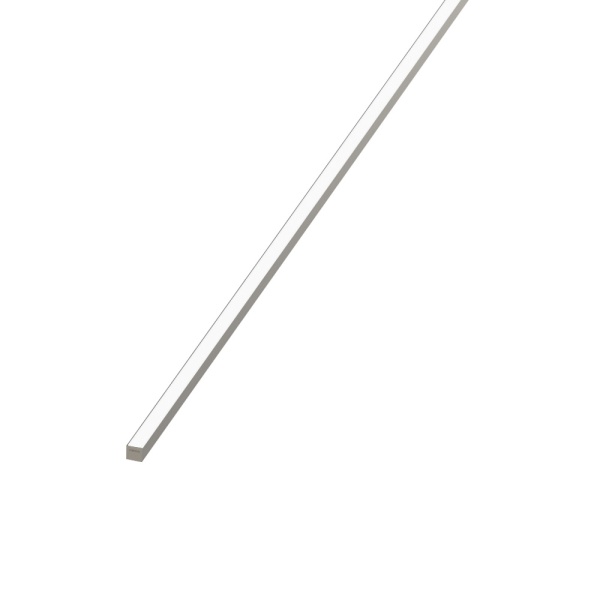

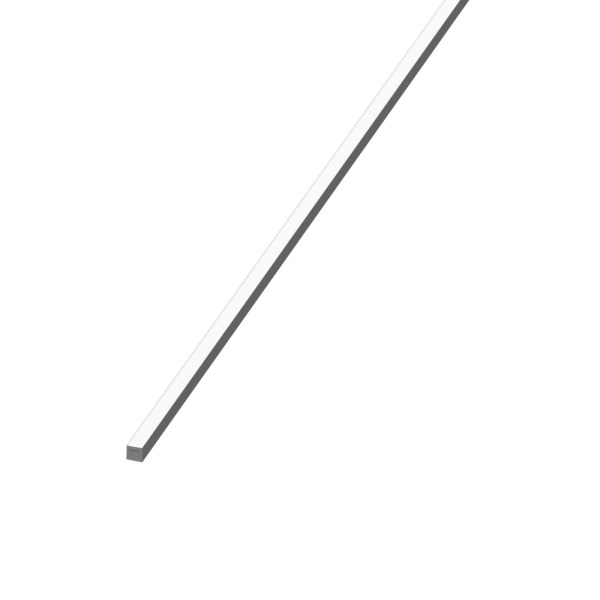

Continuous light line without shadow for molding application in interior spaces, with upward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK03
IK03
IP
IP40 | IP65
IP40 | IP65
CRI
IP40: 80 | IP65: 90
IP40: 80 | IP65: 90
UGR
22
22
Class
III
III
Shape
Rectangular
Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
26 x L x 25
26 x L x 25
Standards
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-1;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
100º
100º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
IP40: 50000h | IP65: 54000h
IP40: 50000h | IP65: 54000h
Light Source
LED Strip
LED Strip
Light projection
Downward light projection
Downward light projection
Electrical Supply
24V
24V
Energy Efficiency
IP40: E
IP40: E
Luminous flux Maintenance
L70B10 | L70
L70B10 | L70
