4010

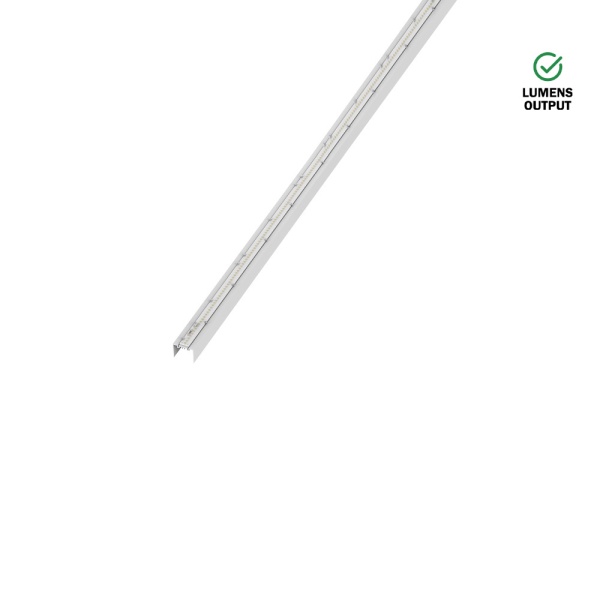

Continuous light line without shadow for molding application in interior spaces, with upward light projection. Extruded aluminum body. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK06
IK06
IP
IP20
IP20
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
<22
<22
Class
I
I
Shape
Rectangular
Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
45,5 x L x 39
45,5 x L x 39
Standards
EN 60598-1:2015, EN 60598-2-1:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
EN 60598-1:2015, EN 60598-2-1:2012, IEC 60529, EN 50581:2012,
IEC 61000-3-2:2014, EN 61547:2009
Beam Angle
106,6º
106,6º
Directives
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
2012/19/UE REEE, 2014/30/UE Electromagnetic Compatibility, 2014/35/UE Low Voltage
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Upward light projection
Upward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
