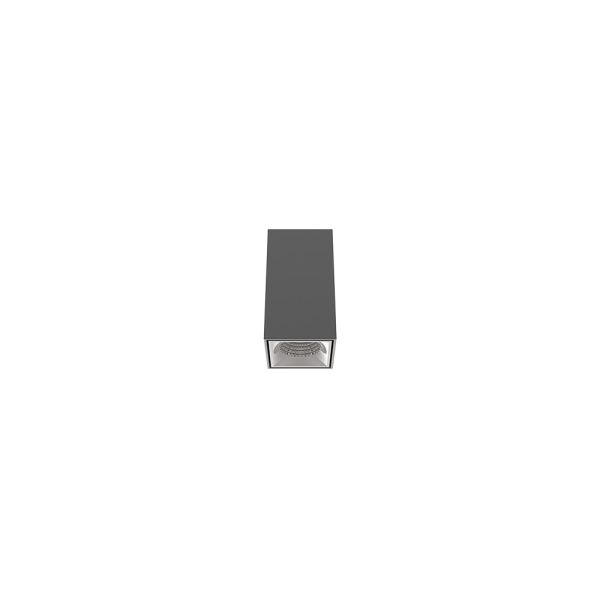

1524-100
Surface luminaire for indoor application, with downward light projection. Aluminum body with the possibility of painting in different colors. Ultra-compact size, with an optical system that guarantees an efficient flow with a high level of visual comfort due to controlled brightness. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Surface
Ceiling Surface
IK
IK03
IK03
IP
IP20
IP20
CRI
>80
>80
UGR
<15
<15
Class
III
III
Shape
Square
Square
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
Measures
40x40x76
40x40x76
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
50º
50º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
