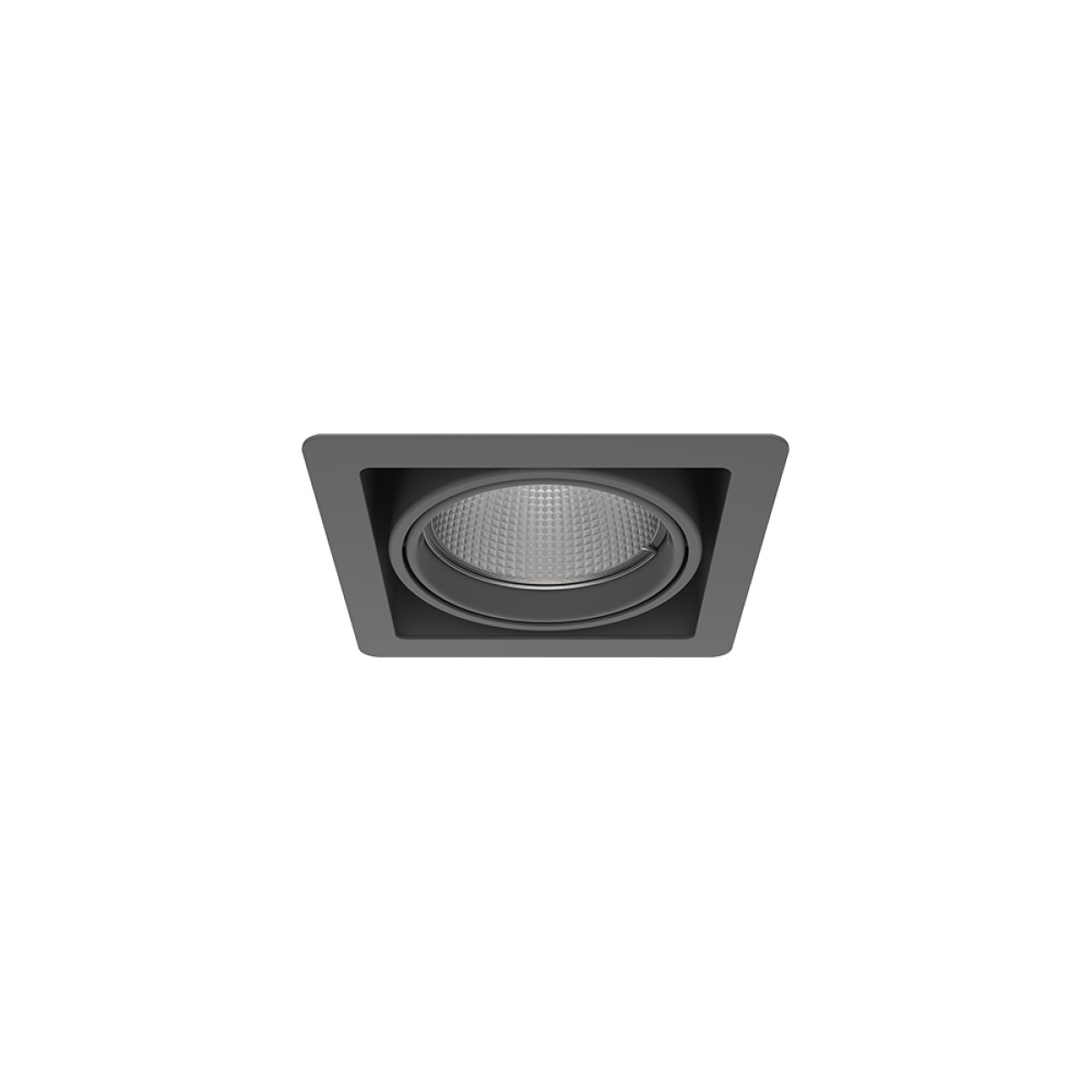

6137-100
Recessed trim luminaire for indoor application, with orientable light projection. Exterior rim in brushed or painted stainless steel. Painted galvanized steel plate body.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
IP20
IP20
CRI
GU10 AR111: >80; COB: 90
GU10 AR111: >80; COB: 90
UGR
GU10 AR111: <29; COB: <19
GU10 AR111: <29; COB: <19
Class
I
I
Shape
Square
Square
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
MacAdam
COB: 2
COB: 2
Measures
185x185 F165x165
185x185 F165x165
Standards
EN 60598-1;
EN 60598-2-2
EN 60598-1;
EN 60598-2-2
Beam Angle
GU10 AR111: 48º; COB: 35º
GU10 AR111: 48º; COB: 35º
Directives
RoHS; 2014/35/EU
RoHS; 2014/35/EU
Average Life
GU10 AR111: 25000h; COB: 50000h
GU10 AR111: 25000h; COB: 50000h
Light Source
LED GU10 | COB
LED GU10 | COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
GU10 AR111: G; COB: E
GU10 AR111: G; COB: E
Luminous flux Maintenance
COB: L80B20
COB: L80B20
