6080-300

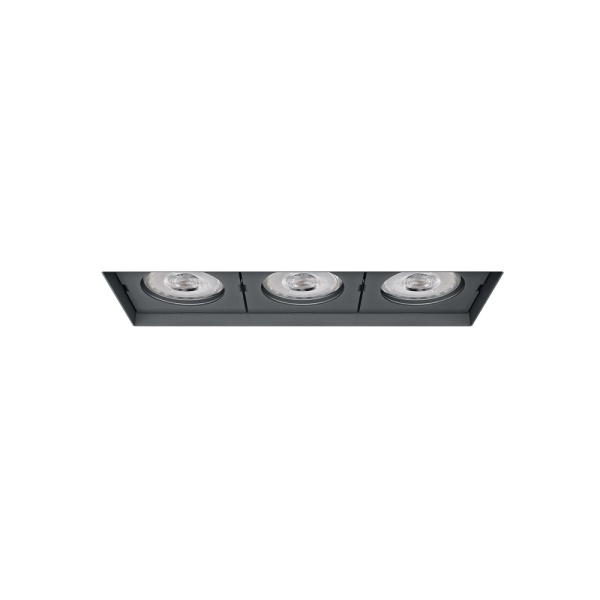

Trimless recessed luminaire for indoor application, with orientable light projection. Galvanized steel plate body, painted.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
IP20
IP20
CRI
GU10: 90
GU10: 90
UGR
GU10: <22
GU10: <22
Class
I
I
Shape
Rectangular
Rectangular
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
MacAdam
GU10: <6
GU10: <6
Measures
225x75 F75x225
225x75 F75x225
Standards
EN 60598-1;
EN 60598-2-2
EN 60598-1;
EN 60598-2-2
Beam Angle
GU10: 35º
GU10: 35º
Directives
RoHS; 2014/35/EU
RoHS; 2014/35/EU
Average Life
GU10: 25000h
GU10: 25000h
Light Source
LED GU10
LED GU10
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
GU10: F
GU10: F
Luminous flux Maintenance
GU10: L70
GU10: L70
