6061

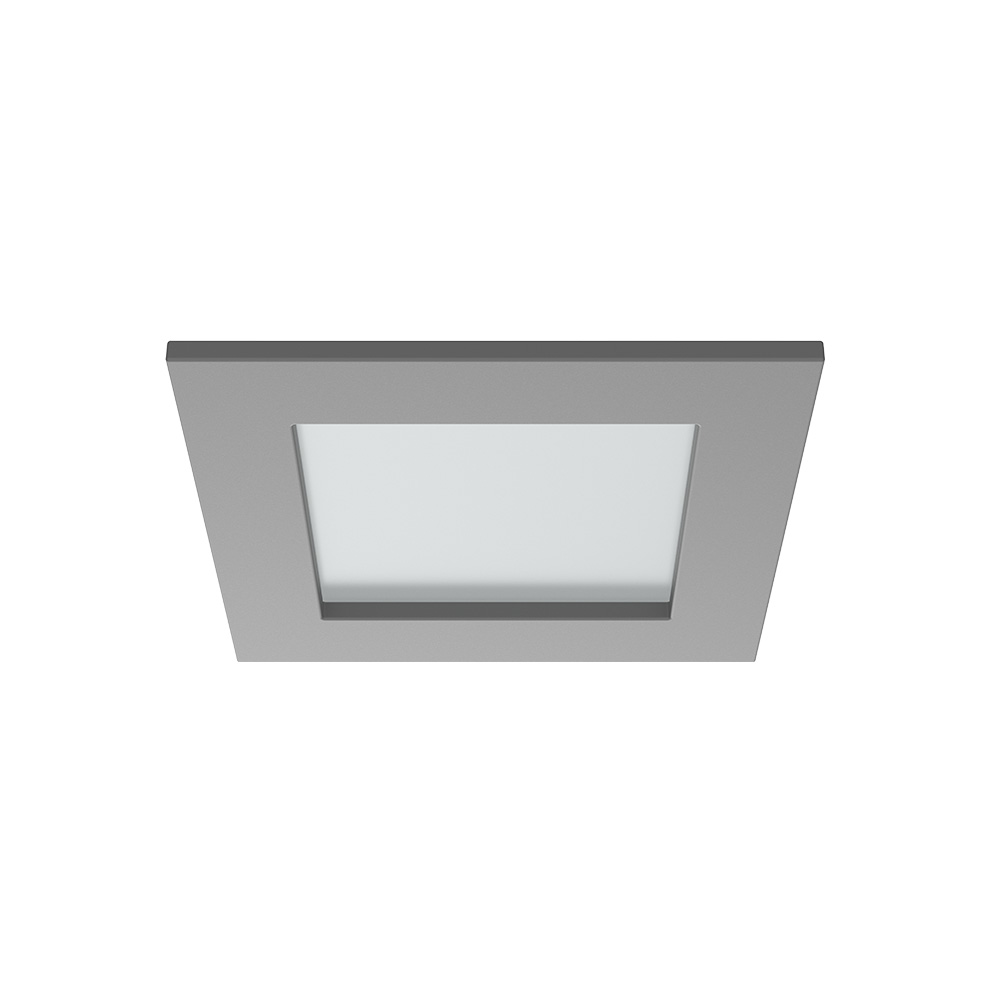

Recessed trim luminaire for indoor application, with downward light projection. Exterior rim in brushed or painted stainless steel. 4mm thickness tempered glass included. Galvanized steel plate body, painted.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP43
IP43
CRI
GU10: 90; COB: >80
GU10: 90; COB: >80
UGR
GU10: <22; COB: <15
GU10: <22; COB: <15
Class
I
I
Shape
Square
Square
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
MacAdam
GU10: <6; COB: 3
GU10: <6; COB: 3
Measures
90x90 F75x75
90x90 F75x75
Standards
EN 60598-1;
EN 60598-2-2
EN 60598-1;
EN 60598-2-2
Beam Angle
GU10: 35º; COB: 60º
GU10: 35º; COB: 60º
Directives
RoHS; 2014/35/EU
RoHS; 2014/35/EU
Average Life
GU10: 25000h; COB: 55000h
GU10: 25000h; COB: 55000h
Light Source
LED GU10 | COB
LED GU10 | COB
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
GU10: F; COB: E
GU10: F; COB: E
Luminous flux Maintenance
GU10: L70
GU10: L70
