5516

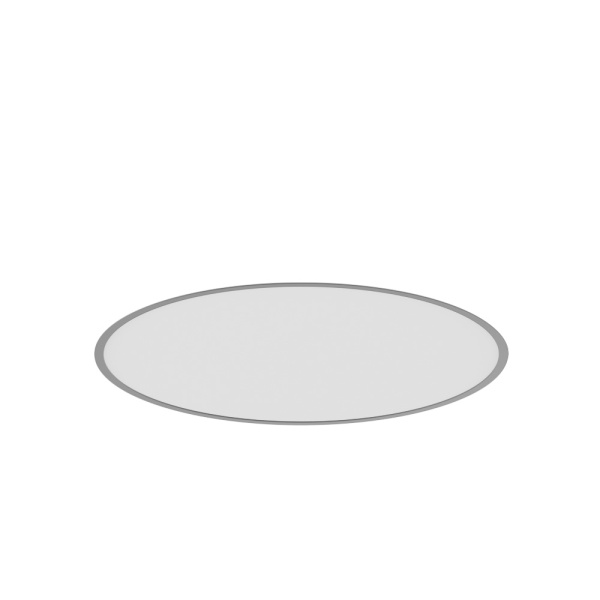

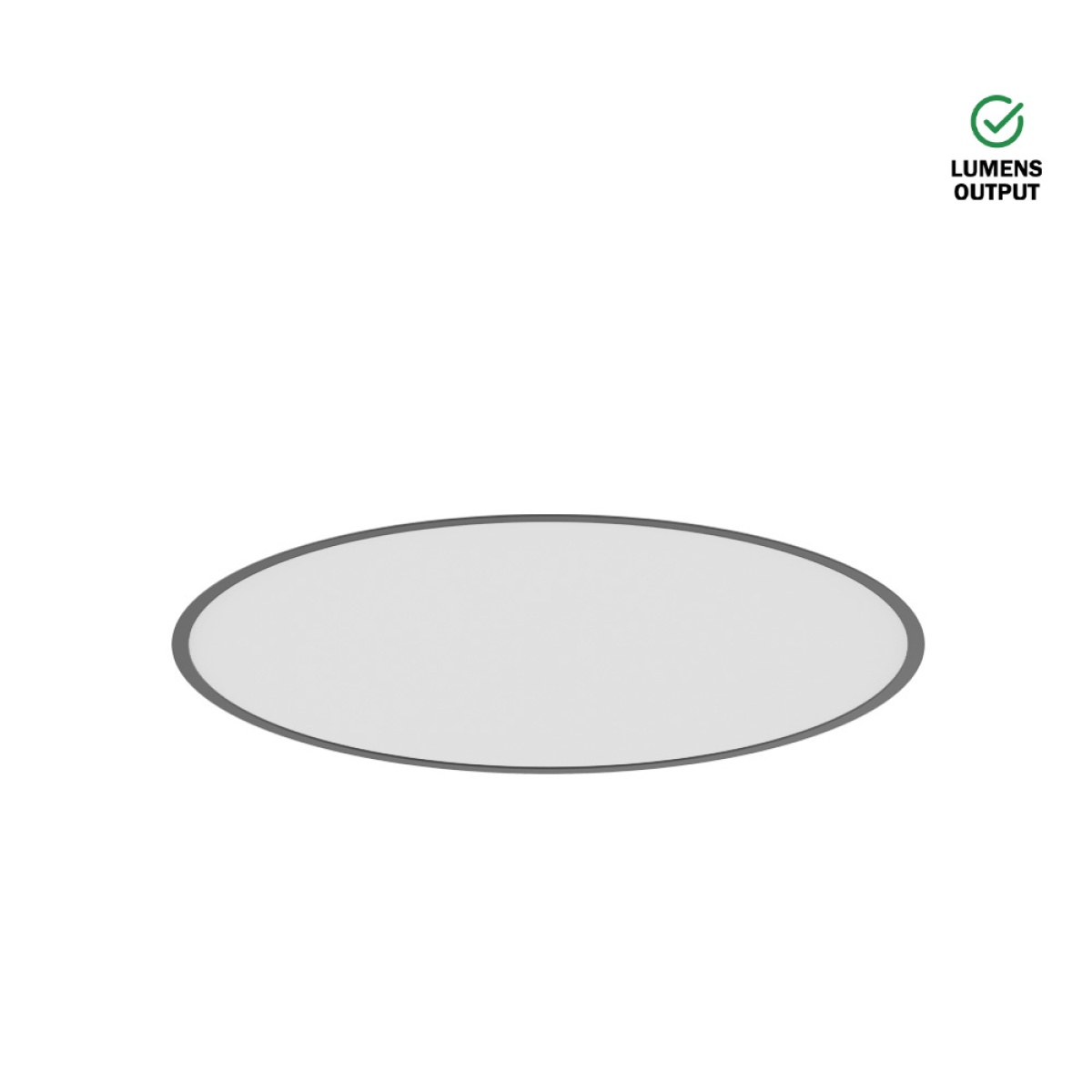

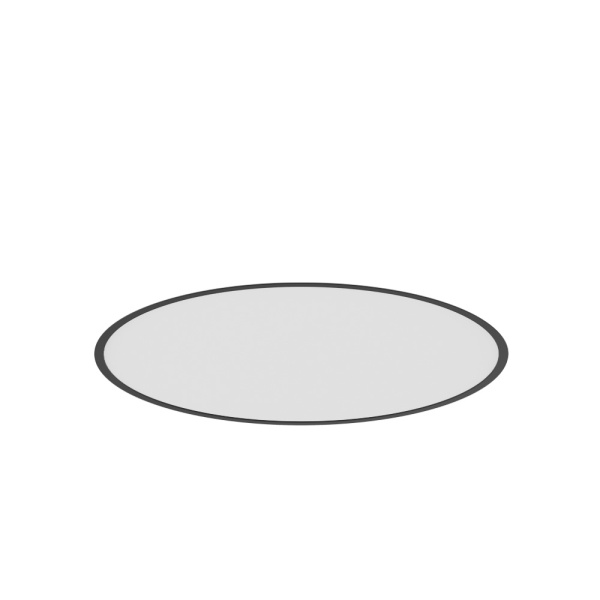

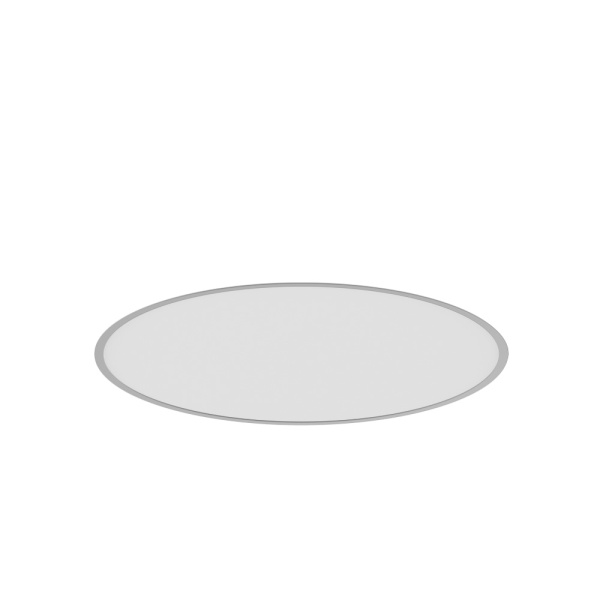

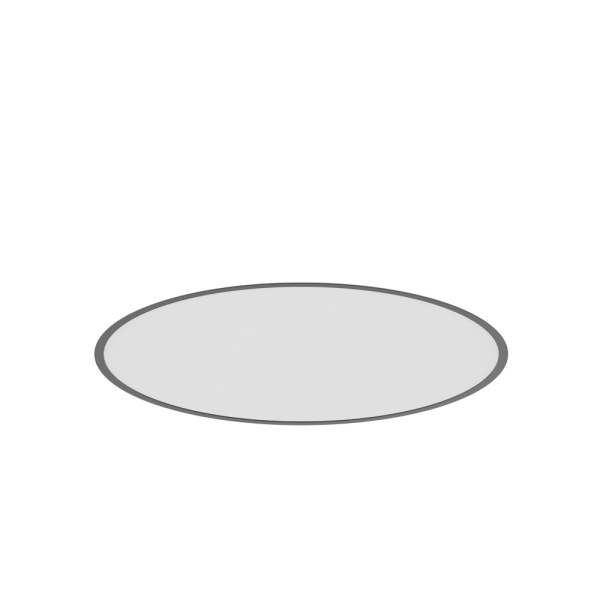

Recessed trim luminaire luminaire for indoor application, with downward light projection. Aluminium body can be painted in different colours. Diffuser in opal polycarbonate.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP40
IP40
CRI
80
80
UGR
>22
>22
Class
I
I
Shape
Circular
Circular
MacAdam
≤3
≤3
Measures
Ø310x50; Ø410x50; Ø510x50
Ø310x50; Ø410x50; Ø510x50
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
160º
160º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
50000h
50000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
E | D
E | D
Luminous flux Maintenance
L70
L70
