5510

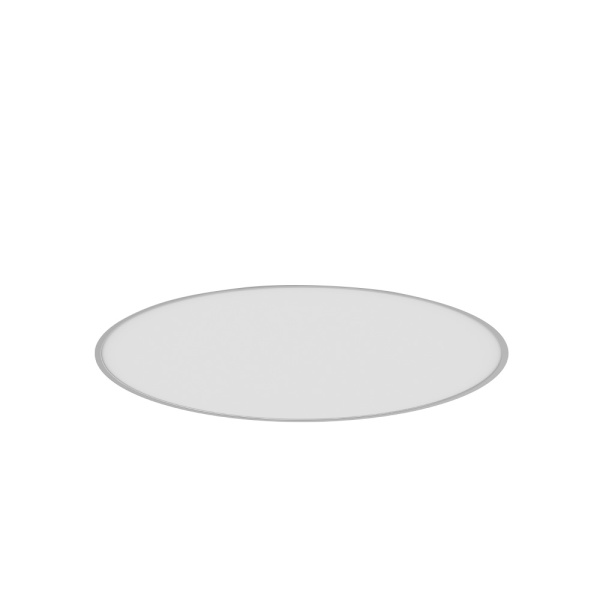

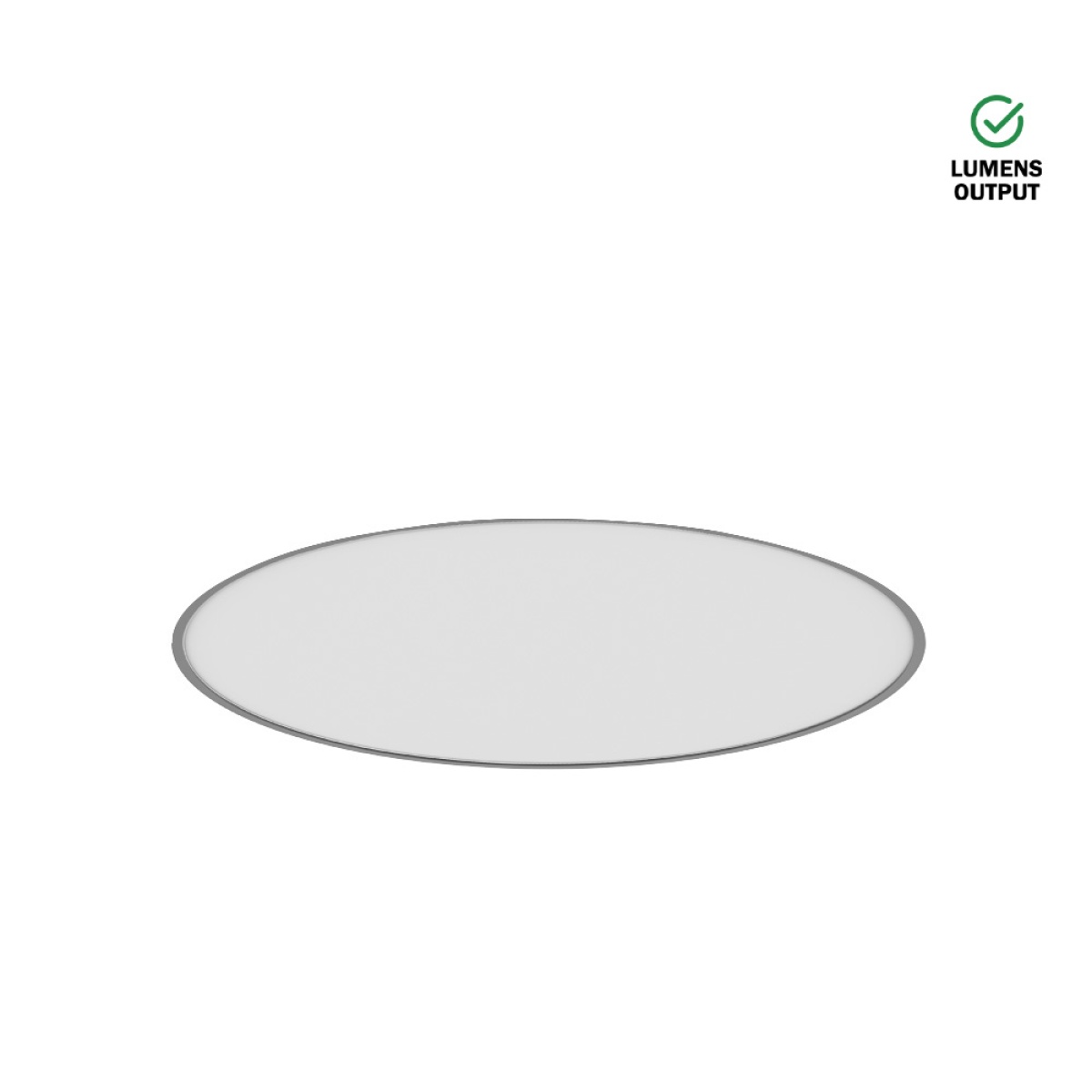

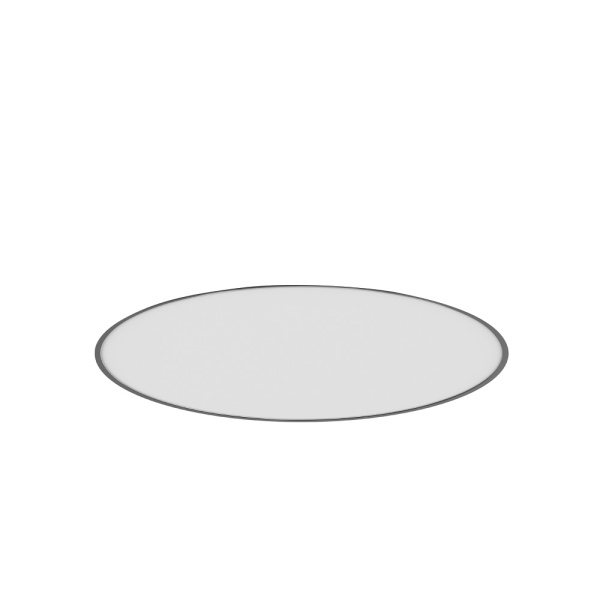

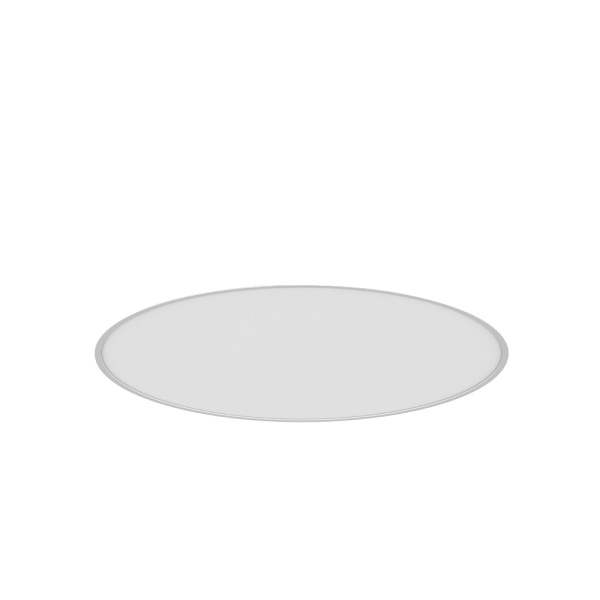

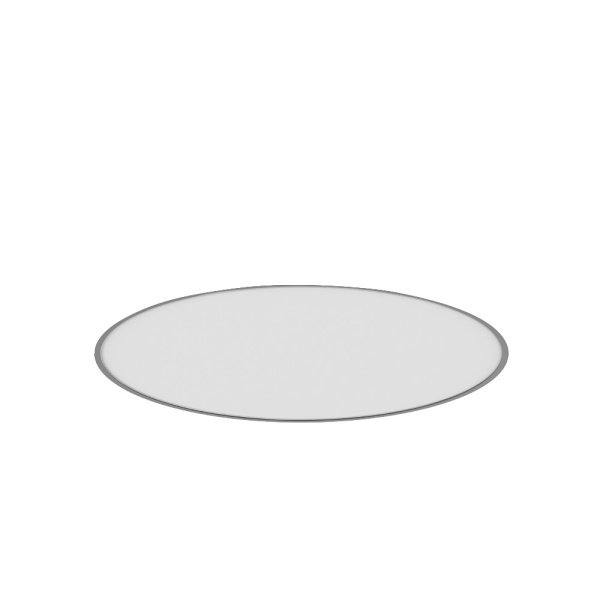

Trimless recessed luminaire luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Incorporated driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP20
IP20
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
<22
<22
Class
I
I
Shape
Circular
Circular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
Ø250x80; Ø350x80; Ø450x120; Ø650x120; Ø950x120; Ø1250x120
Ø250x80; Ø350x80; Ø450x120; Ø650x120; Ø950x120; Ø1250x120
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
150º
150º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
