5034

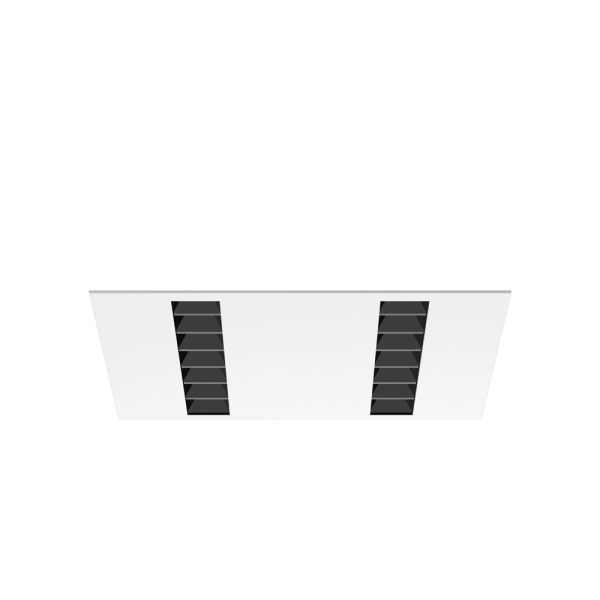

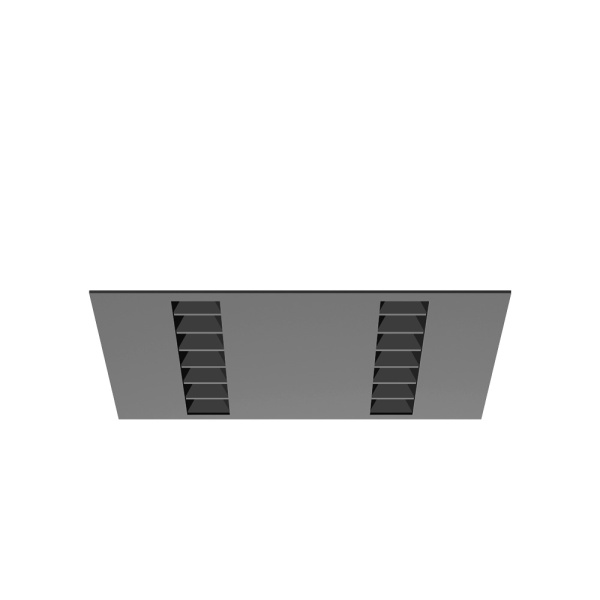

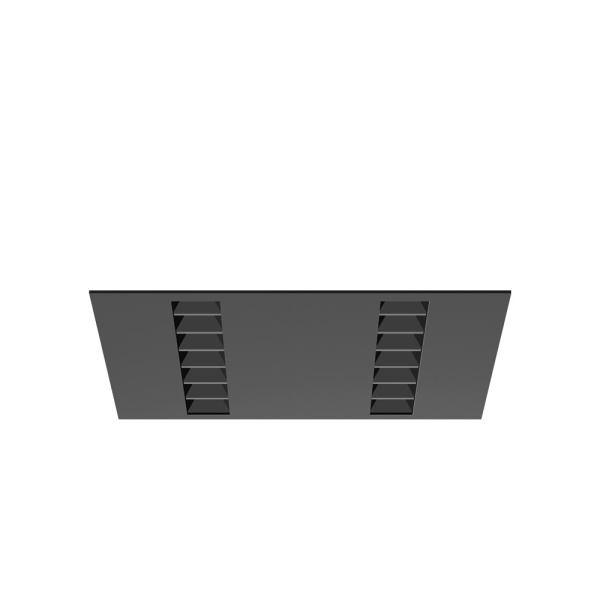

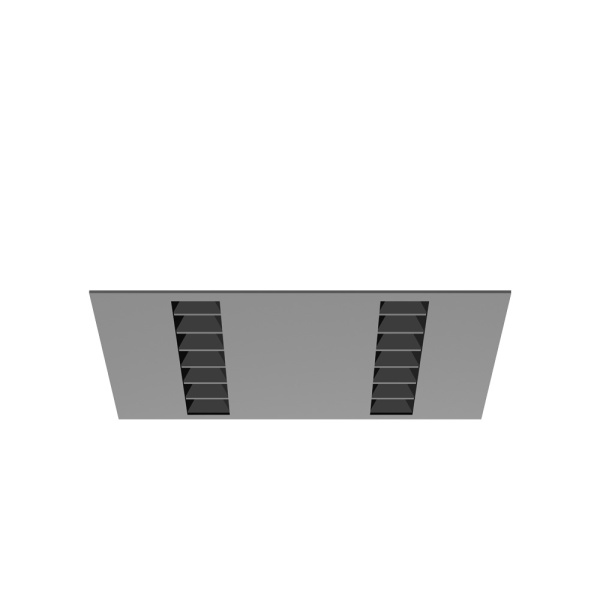

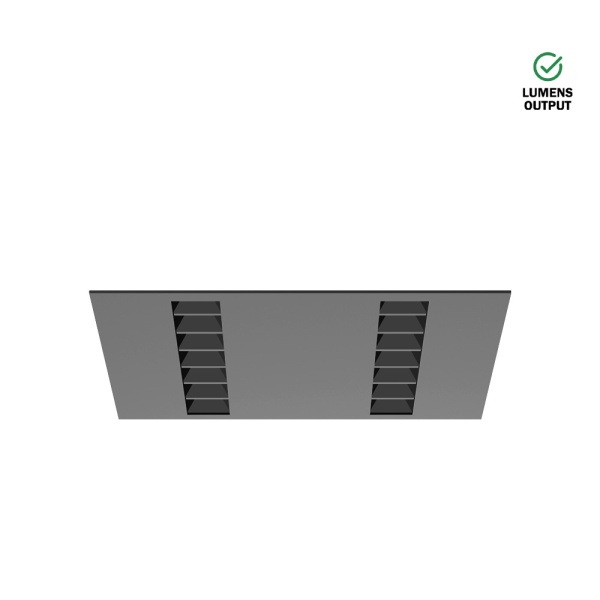

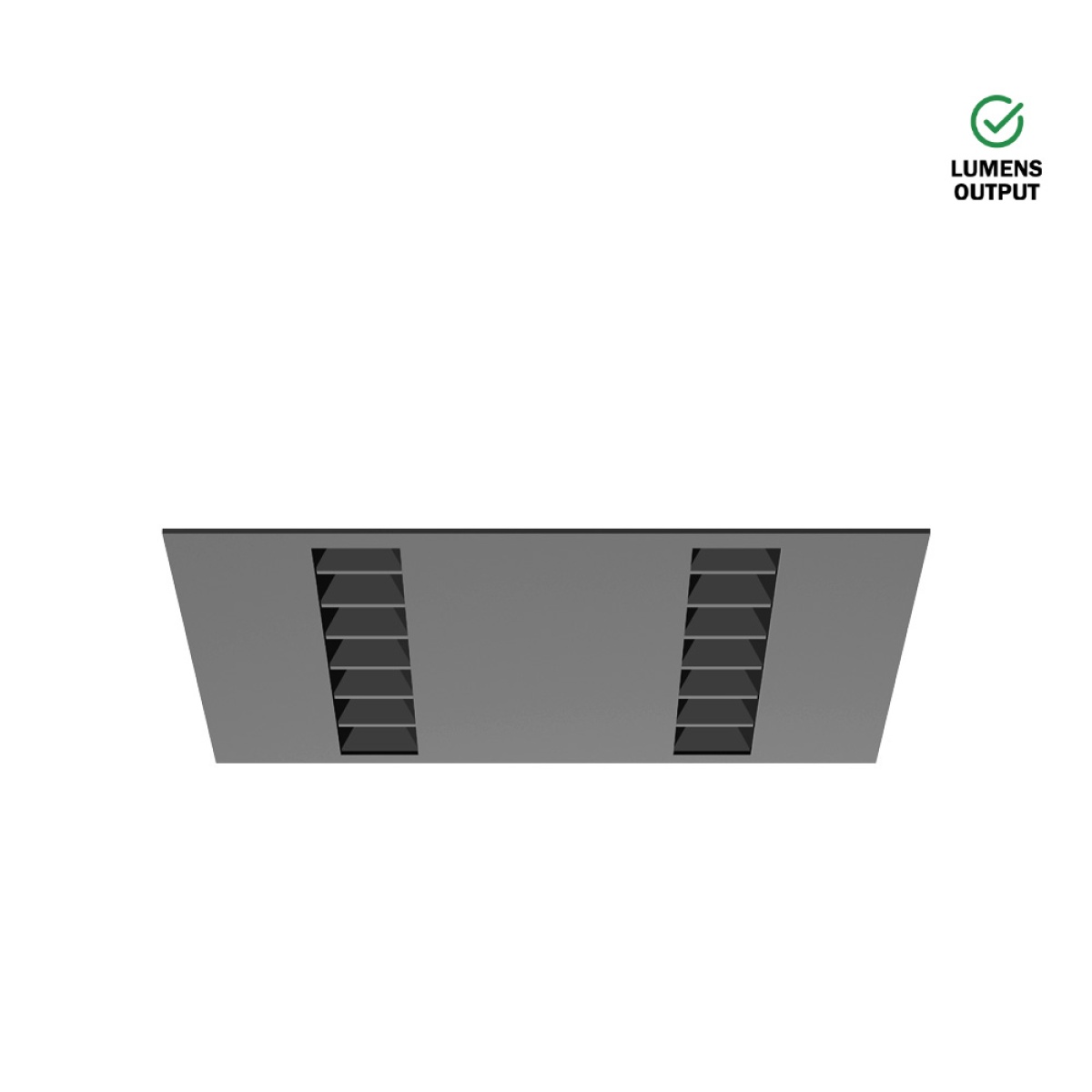

Recessed trim luminaire luminaire for indoor application, with downward light projection. Aluminium body can be painted in different colours. Diffuser in opal polycarbonate. Equipped with a lens system.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK04
IK04
IP
IP40
IP40
CRI
80
80
UGR
<19
<19
Class
I
I
Shape
Square or Rectangular
Square or Rectangular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
300x300x45; 600x300x45; 900x300x45; 1200x300x45; 1500x300x45
300x300x45; 600x300x45; 900x300x45; 1200x300x45; 1500x300x45
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
85º
85º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
120000h
120000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Luminous flux Maintenance
L80B10
L80B10
