4526

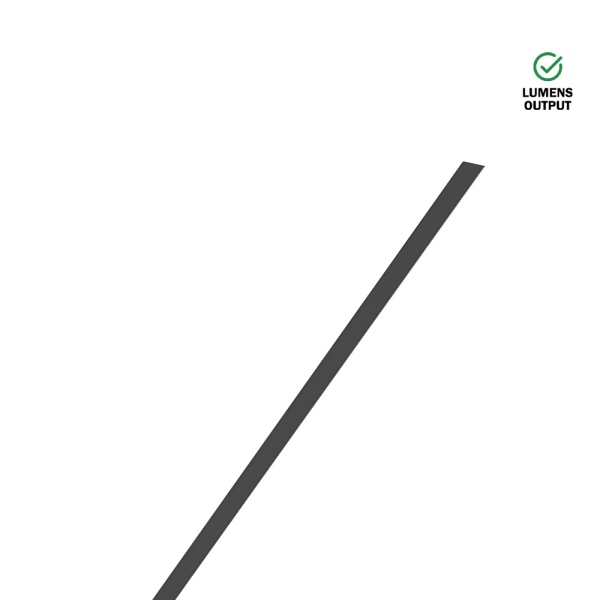

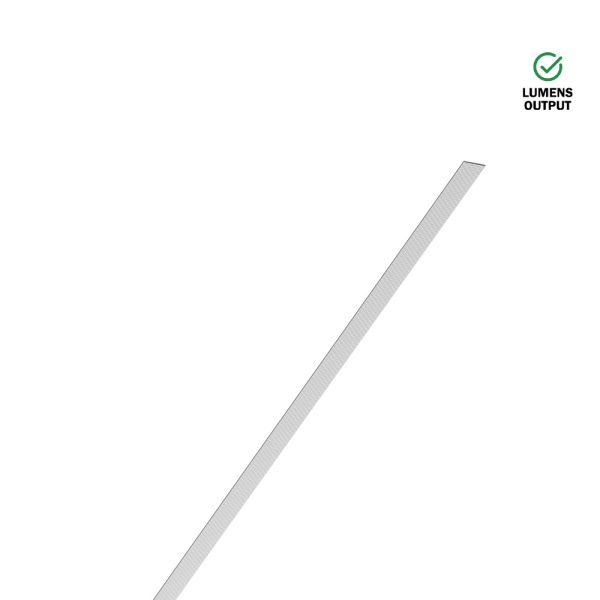

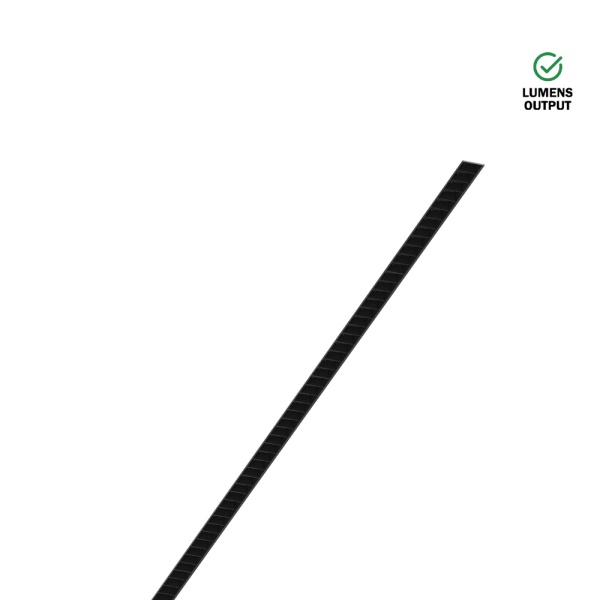

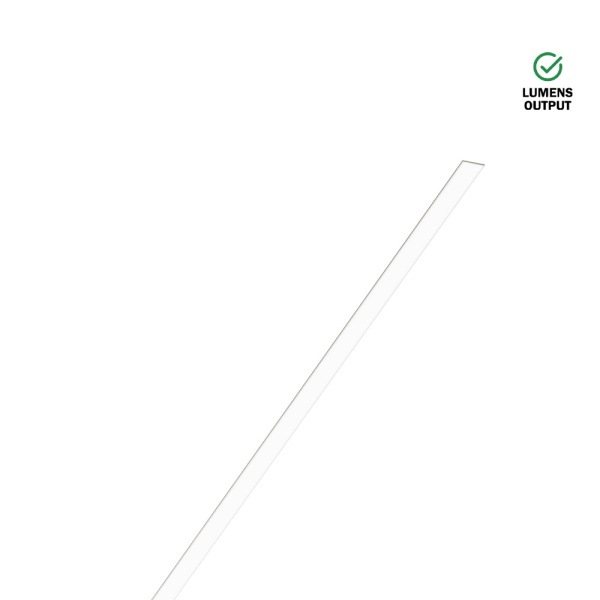

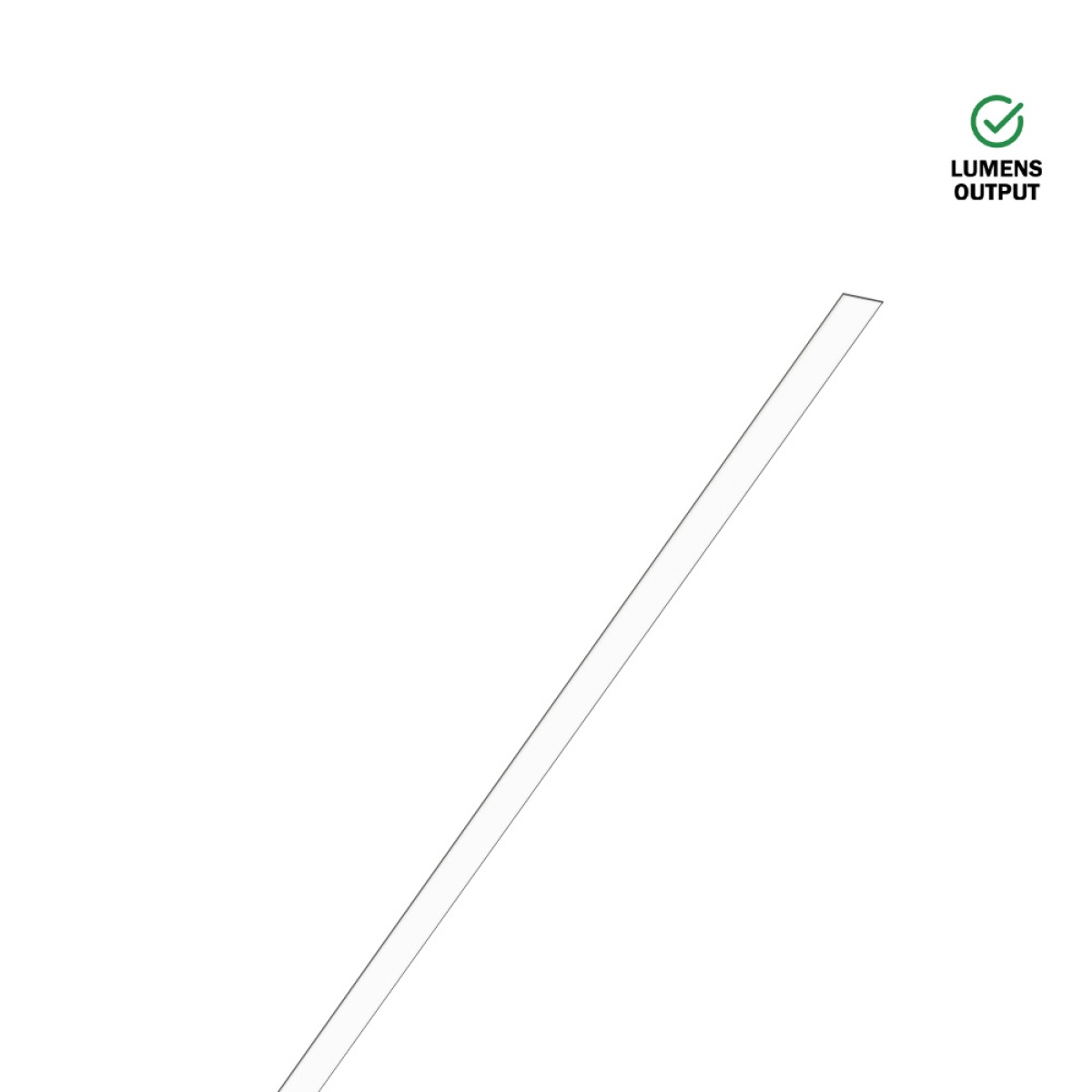

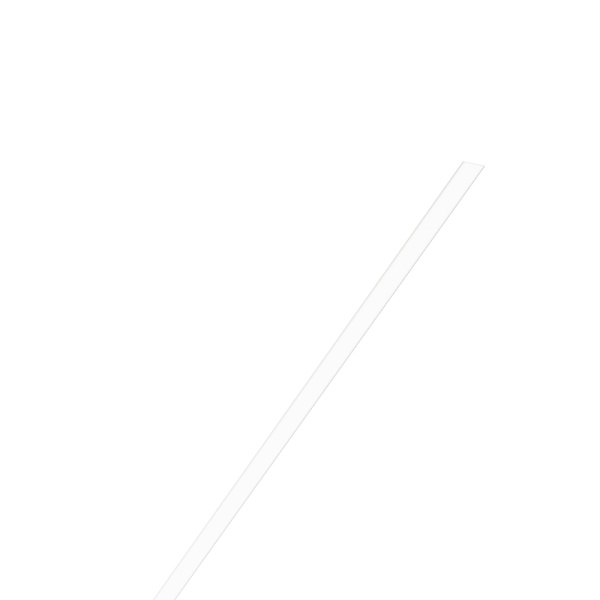

Trimless recessed luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Opaline, prismatic or black polycarbonate diffuser. Remote driver. Possibility of adding different modular accessories.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK04
IK04
IP
IP40
IP40
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
Opal <21 | Prismatic <19.5
Opal <21 | Prismatic <19.5
Class
I
I
Shape
Rectangular
Rectangular
Driver
Remote
Remote
MacAdam
3
3
Measures
35 x L x 45
35 x L x 45
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
108.6º
108.6º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
