4524

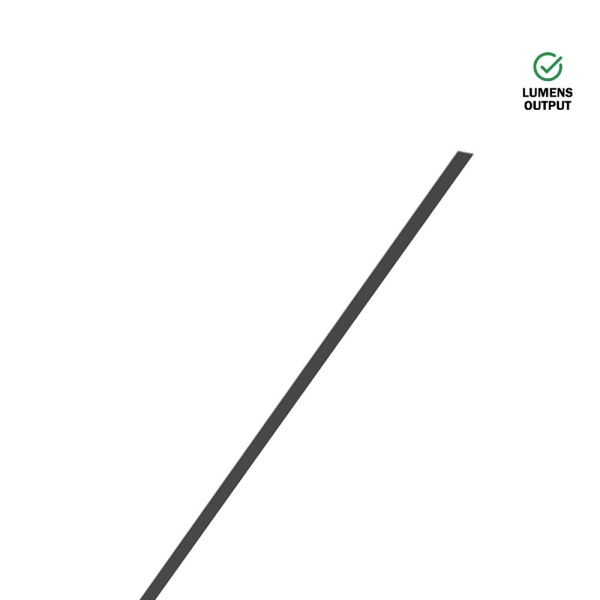

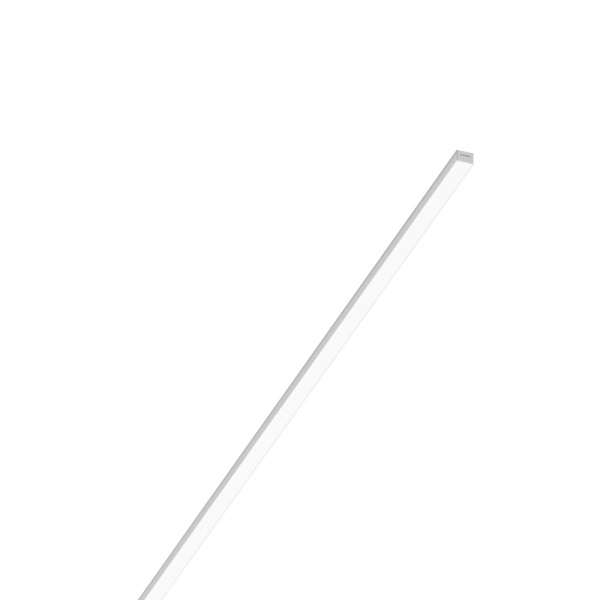

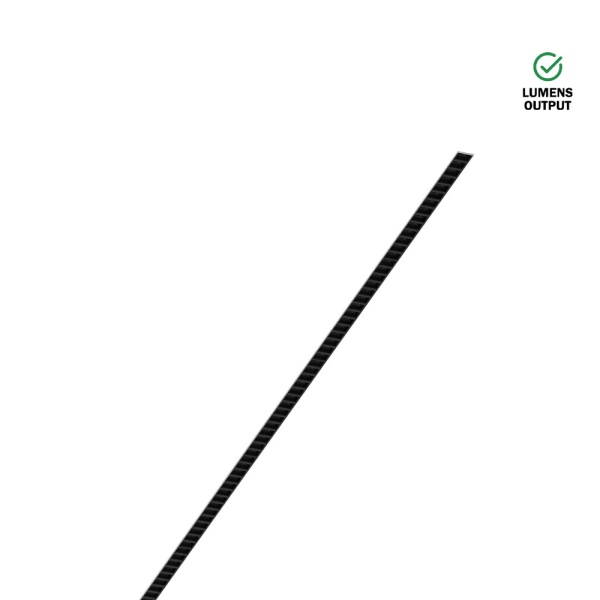

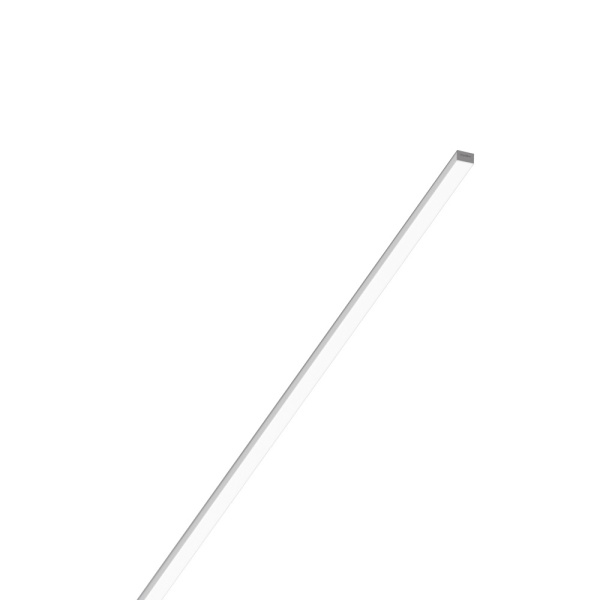

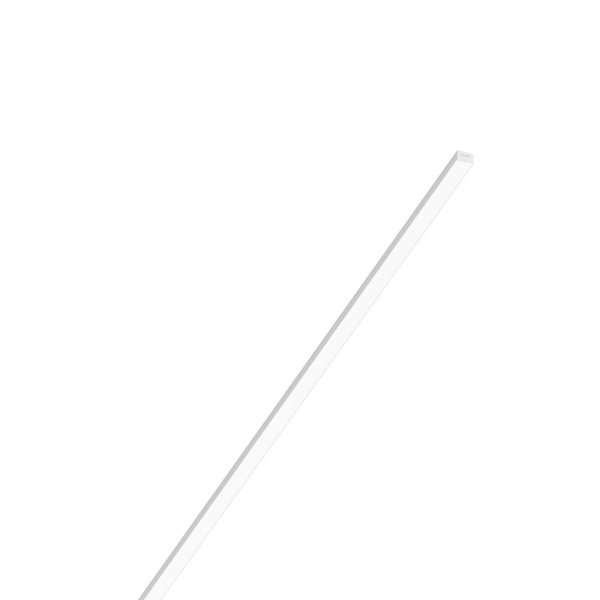

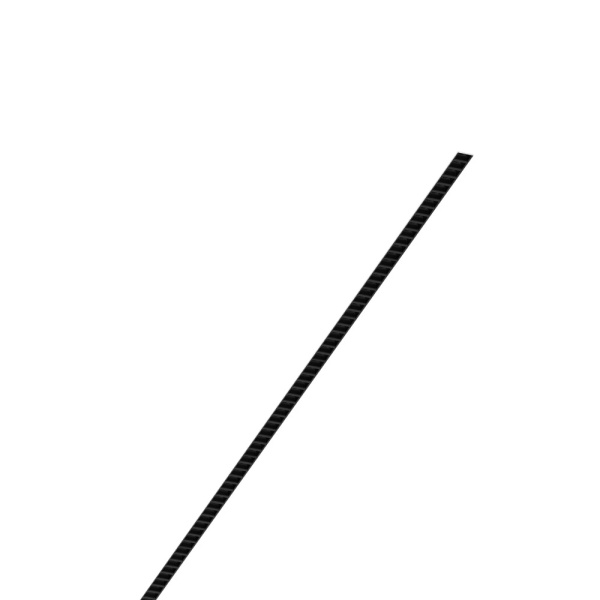

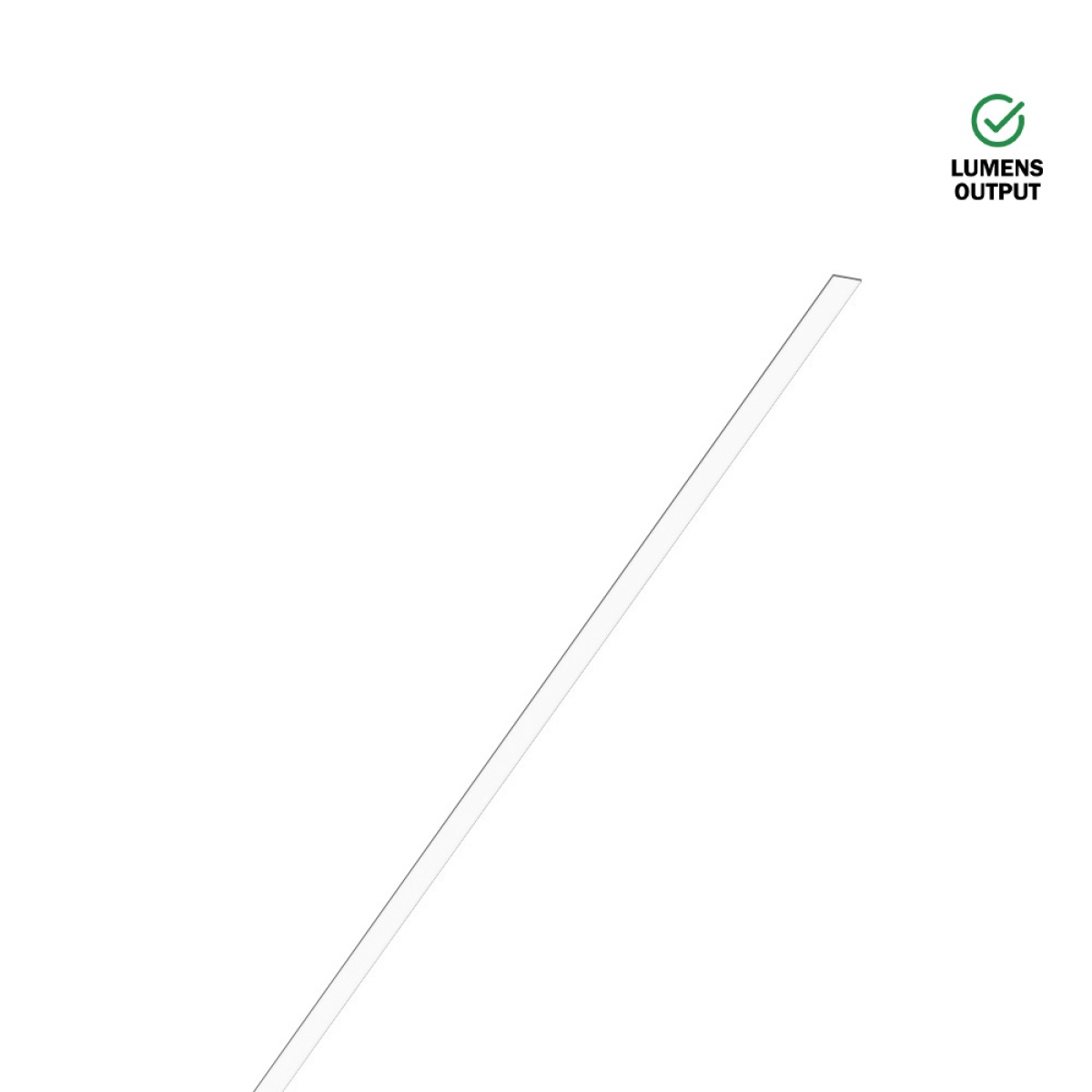

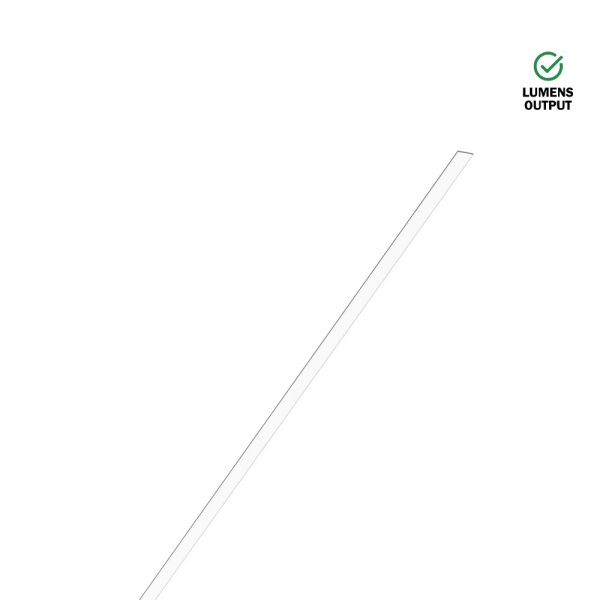

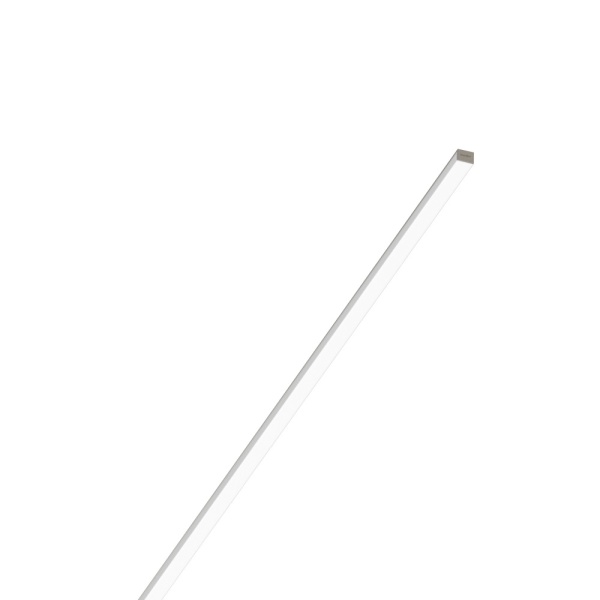

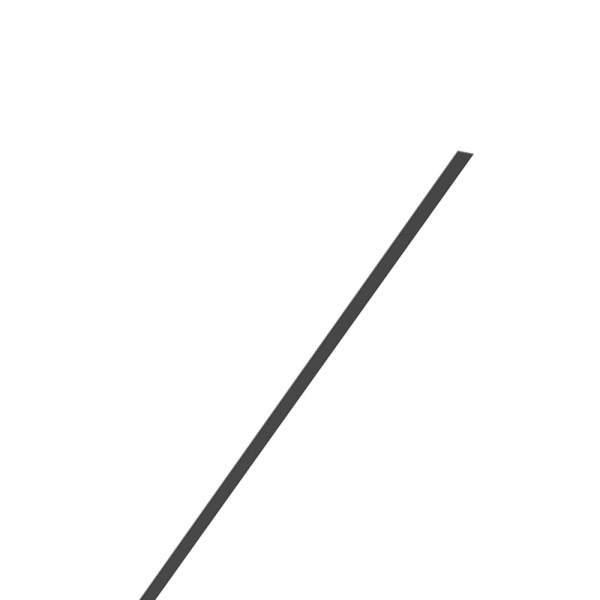

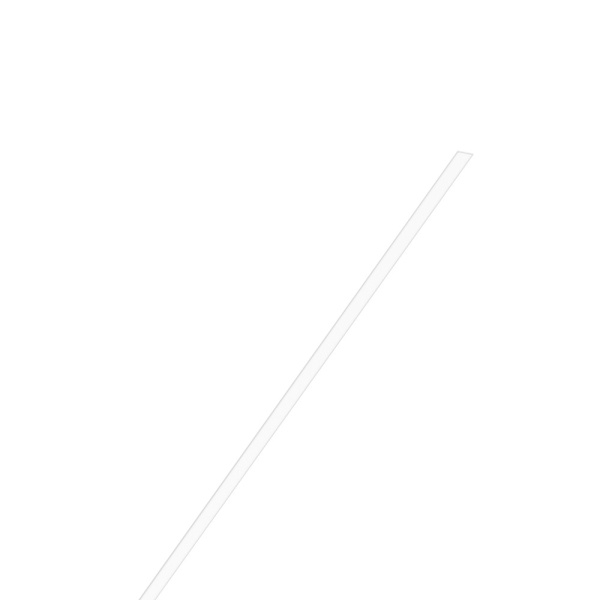

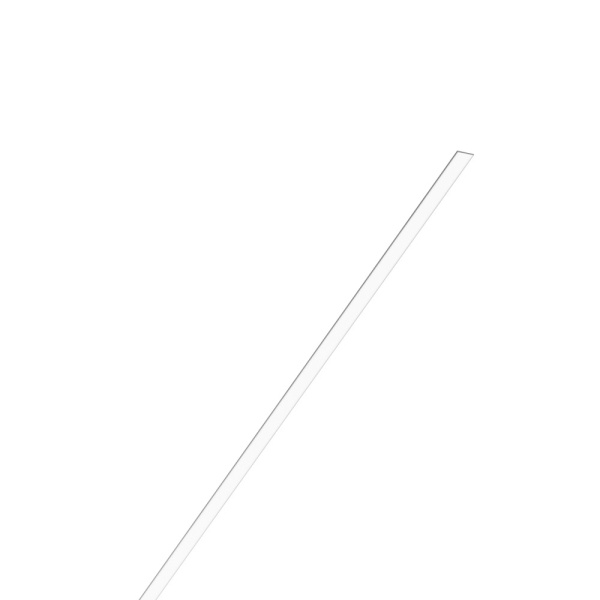

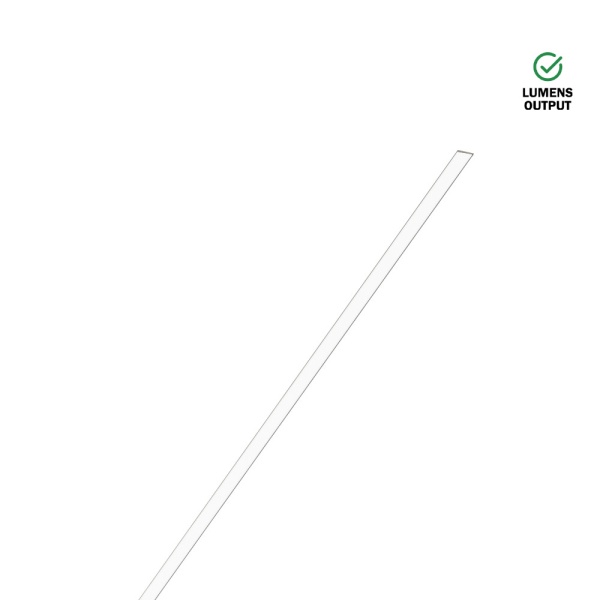

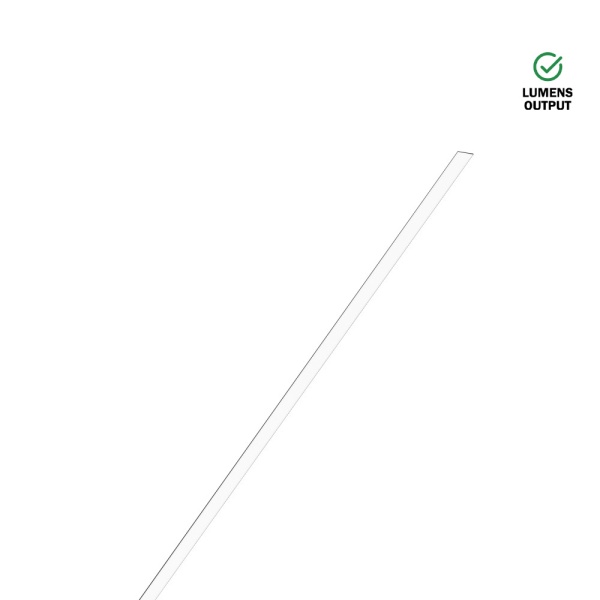

Recessed luminaire for indoor use, with downward light projection. Extruded aluminium body that can be painted in different colours. Diffuser in opal polycarbonate, black or protruding. Remote driver. Possibility of adding different modular accessories
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK04
IK04
IP
IP40
IP40
CRI
80
80
UGR
22
22
Class
I
I
Shape
Rectangular
Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
26 x L x 25
26 x L x 25
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
100º
100º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
80000h
80000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L80B10
L80B10
