4501

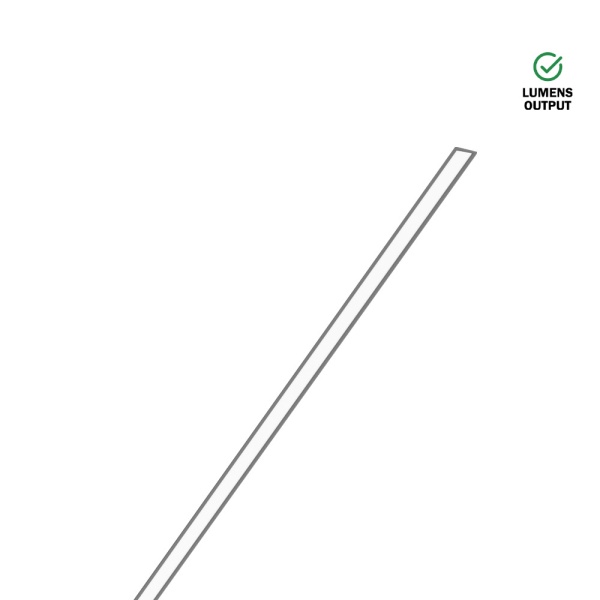

Recessed trim luminaire luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Opaline, salient or black polycarbonate diffuser. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP40 | IP65
IP40 | IP65
CRI
>90 | 90
>90 | 90
UGR
22
22
Class
III
III
Shape
Rectangular
Rectangular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
26 x L x 10
26 x L x 10
Standards
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
EN 60598-1;
EN 60598-2-2;
EN 62471;
EN 55015;
EN 61547;
EN 61000-3-2;
EN 61000-3-3
Beam Angle
180º
180º
Directives
RoHS; 2014/35/EU; 2014/30/EU
RoHS; 2014/35/EU; 2014/30/EU
Average Life
50000h | 54000h
50000h | 54000h
Light Source
COB LED Strip
COB LED Strip
Light projection
Downward light projection
Downward light projection
Electrical Supply
24V
24V
