1518

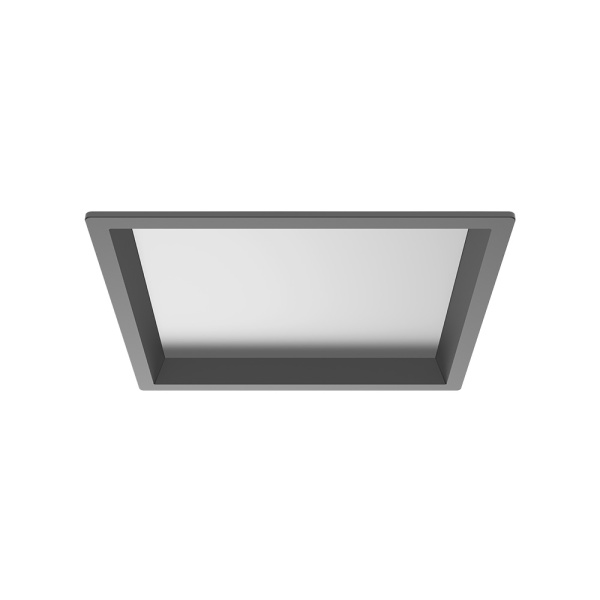

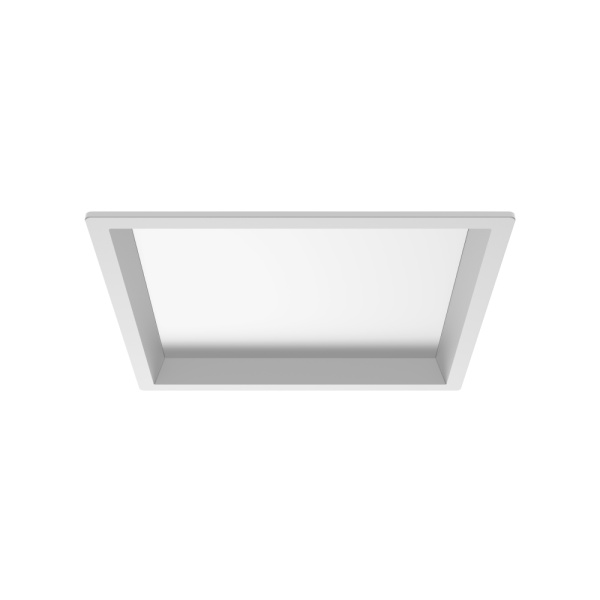

Recessed trim luminaire luminaire for indoor application, with downward light projection. Aluminum body with the possibility of painting in different colors. Opaline diffuser. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
IP44
IP44
Class
II
II
Shape
Square
Square
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
Measures
90x90x40 F78x78 | 140x140x40 F128x128 | 170x170x40 F158x158 | 220x220x40 F208x208
90x90x40 F78x78 | 140x140x40 F128x128 | 170x170x40 F158x158 | 220x220x40 F208x208
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
100º
100º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Luminous flux Maintenance
L80B10
L80B10
