1513

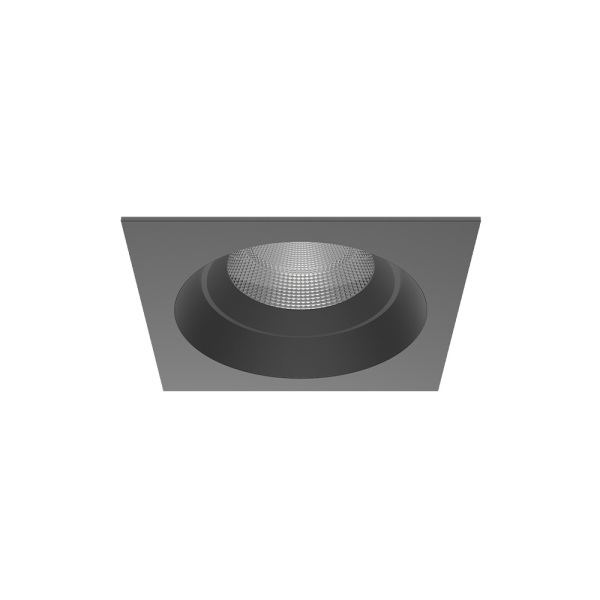

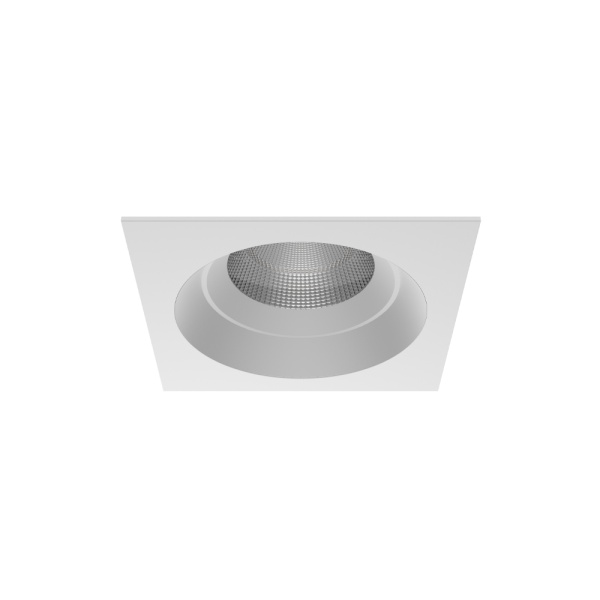

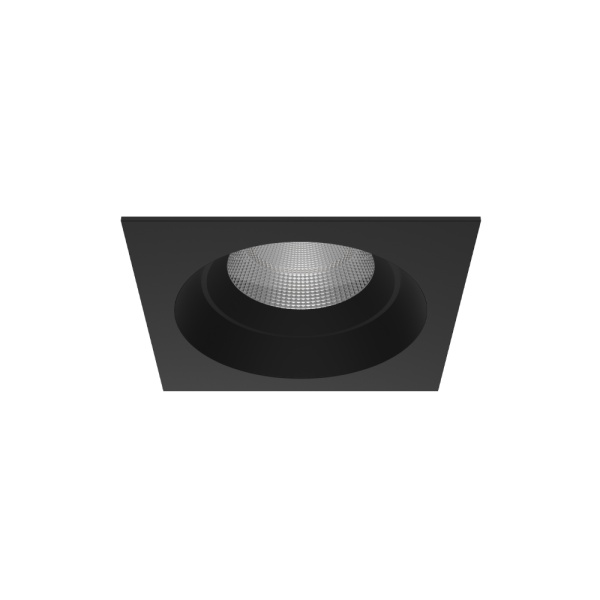

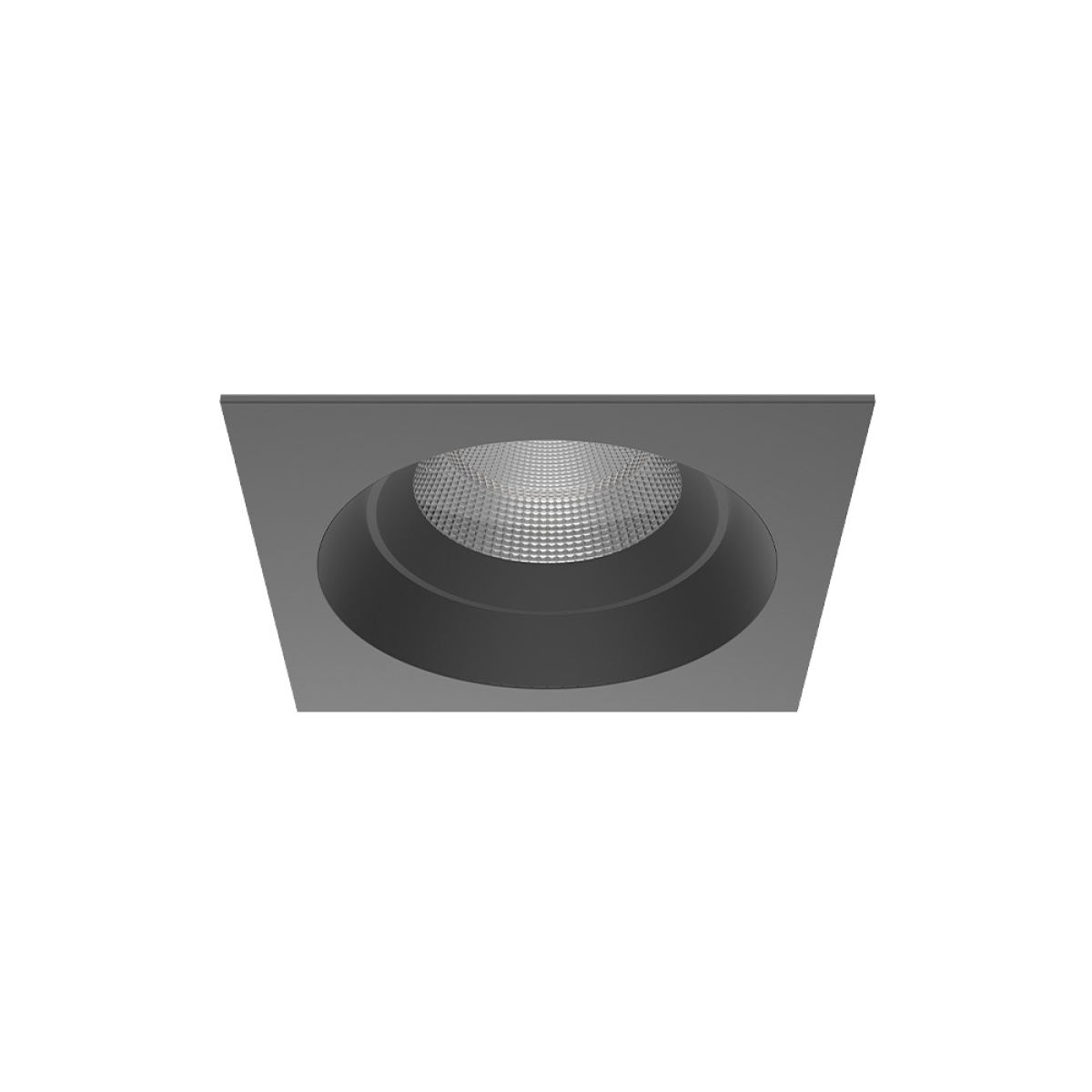

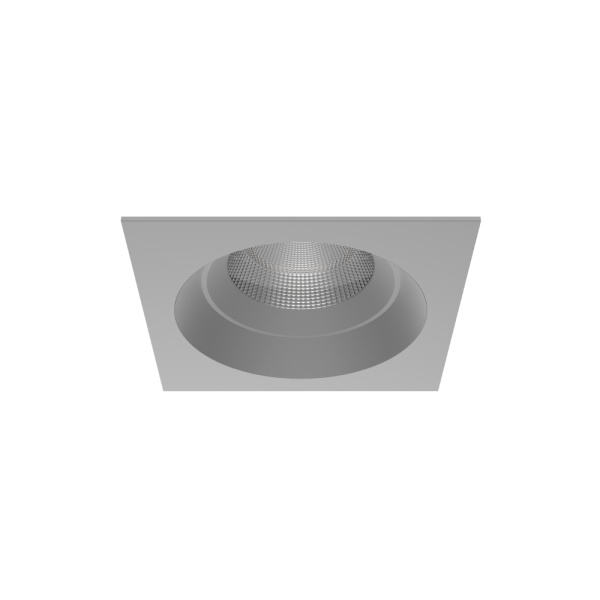

Recessed trim luminaire for indoor application, with orientable light projection. Aluminium body with the possibility of painting in different colors. Transparent glass diffuser. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP20
IP20
CRI
>80
>80
UGR
<28
<28
Class
III
III
Shape
Square
Square
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
85x85x73 F75 | 100x100x85 F90 | 140x140x105 F125 | 175x175x115 F160
85x85x73 F75 | 100x100x85 F90 | 140x140x105 F125 | 175x175x115 F160
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
65º
65º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
55000h
55000h
Light Source
COB
COB
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
D
D
Luminous flux Maintenance
L80B20
L80B20
