1512

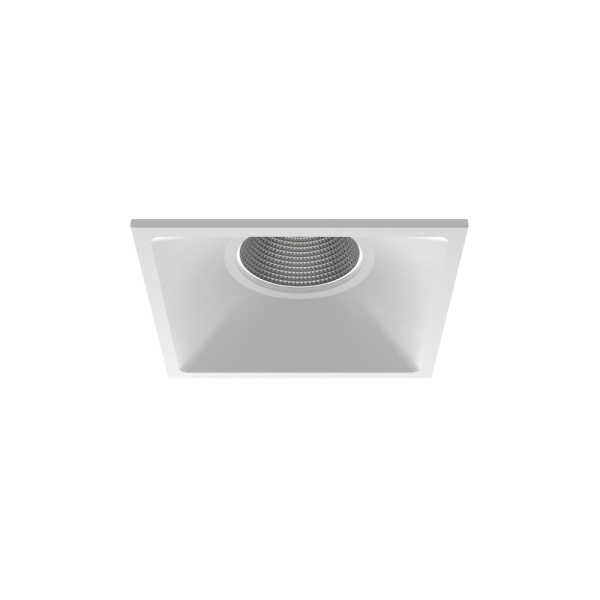

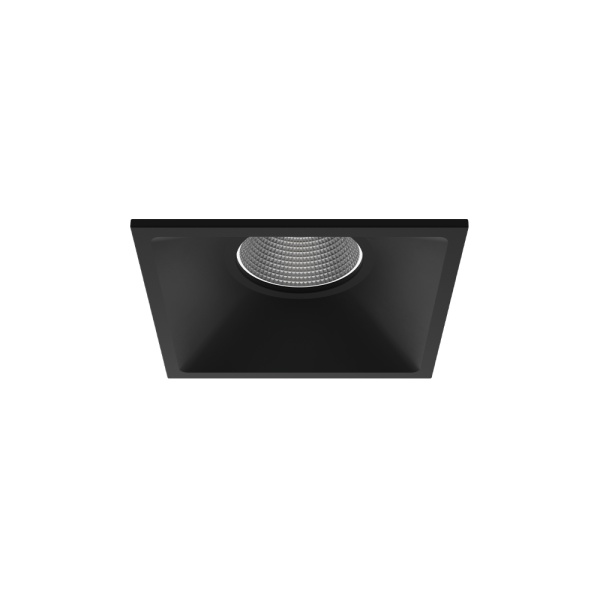

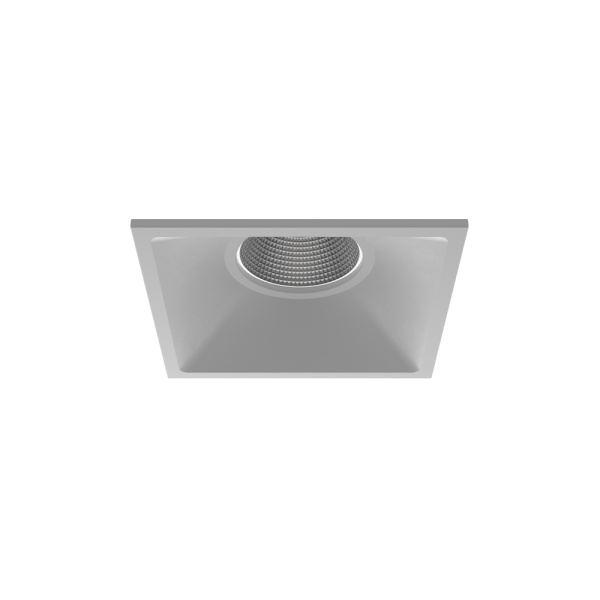

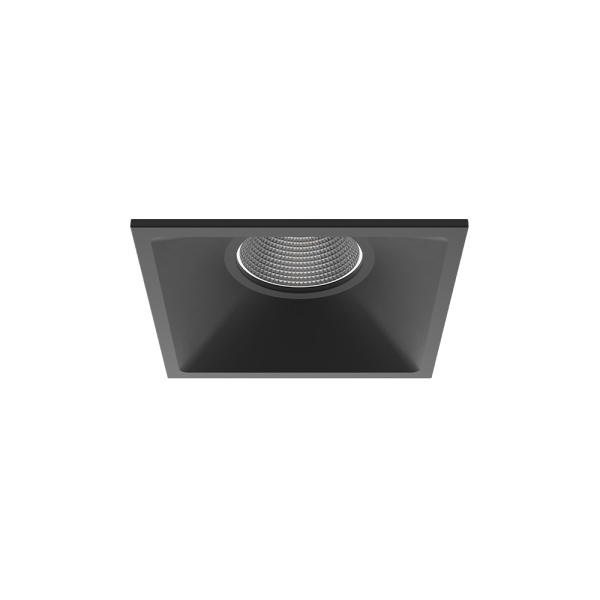

Recessed trim luminaire for indoor application, with downward light projection. Aluminium body with the possibility of painting in different colors. Transparent diffuser.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK02
IK02
IP
GU10: IP20 | COB: IP54
GU10: IP20 | COB: IP54
Class
GU10: I | COB: II
GU10: I | COB: II
Shape
Square
Square
Driver
COB Remote driver included, not integrated in the luminaire
COB Remote driver included, not integrated in the luminaire
Measures
100x100 F86 | 100x100x130 F86 | 100x100x75 F86
100x100 F86 | 100x100x130 F86 | 100x100x75 F86
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Light Source
LED GU10 | COB
LED GU10 | COB
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
