1510

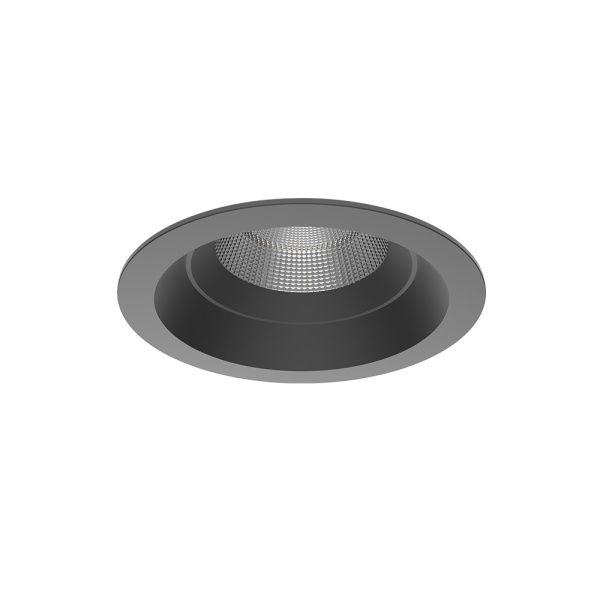

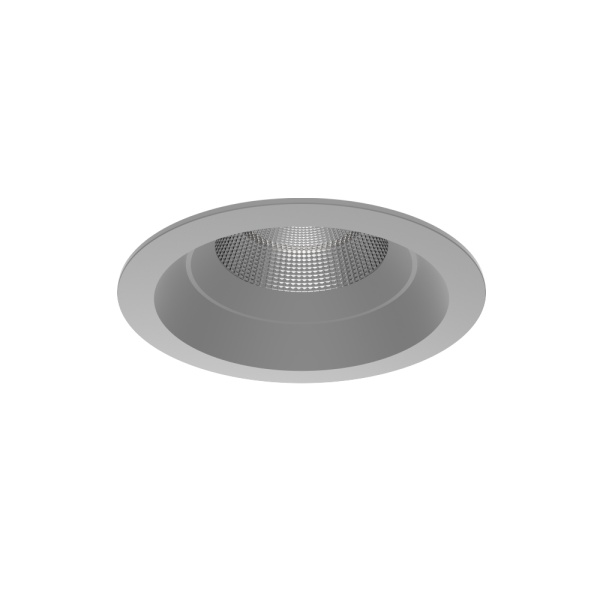

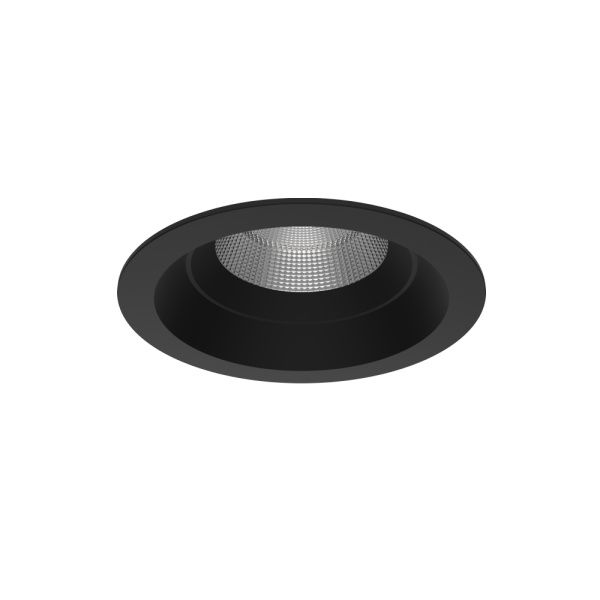

Recessed trim luminaire for indoor application, with downward light projection. Injected aluminium body. Transparent glass diffuser. Orientable. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP20
IP20
CRI
>80
>80
UGR
<28
<28
Class
II
II
Shape
Circular
Circular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
Ø85x70 F70 | Ø100x90 F84 | Ø140x105 F123 | Ø175x115 F144 |
Ø85x70 F70 | Ø100x90 F84 | Ø140x105 F123 | Ø175x115 F144 |
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
65º
65º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
55000h
55000h
Light Source
COB
COB
Light projection
Orientable light projection
Orientable light projection
Electrical Supply
12V
12V
Energy Efficiency
D
D
Luminous flux Maintenance
L80B20
L80B20
