1501

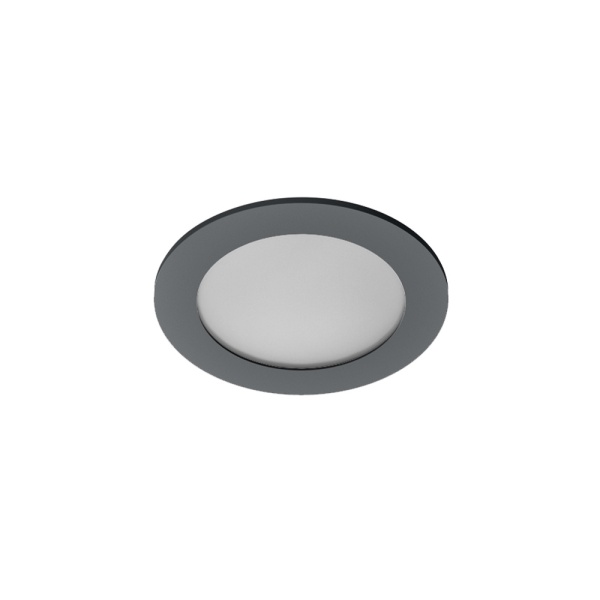

Recessed trim luminaire luminaire for indoor application, with downward light projection. Aluminum body with the possibility of painting in different colors. Matte acrylic diffuser. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Recessed
Ceiling Recessed
IK
IK03
IK03
IP
IP44
IP44
CRI
80
80
UGR
<35
<35
Class
II
II
Shape
Circular
Circular
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
Measures
Ø90x40,5 F80 | Ø120x40,5 F105 | Ø145x40,5 F130 | Ø170x40,5 F162 | Ø220x40,5 F210
Ø90x40,5 F80 | Ø120x40,5 F105 | Ø145x40,5 F130 | Ø170x40,5 F162 | Ø220x40,5 F210
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
90º
90º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
50000h
50000h
Light Source
LED
LED
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
F
F
