5509

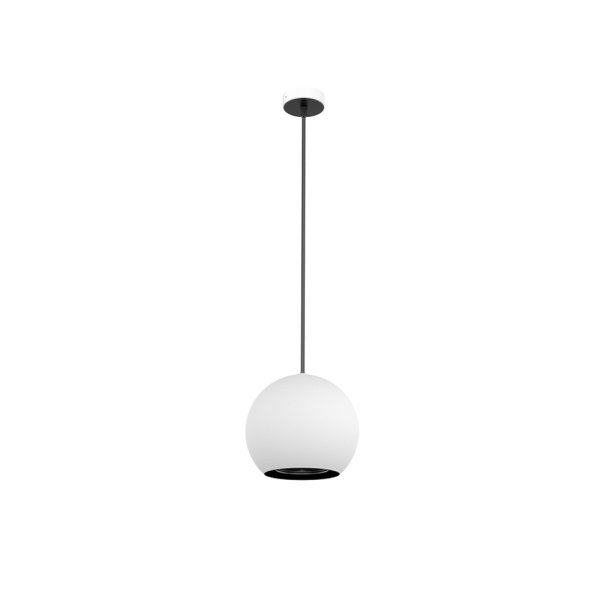

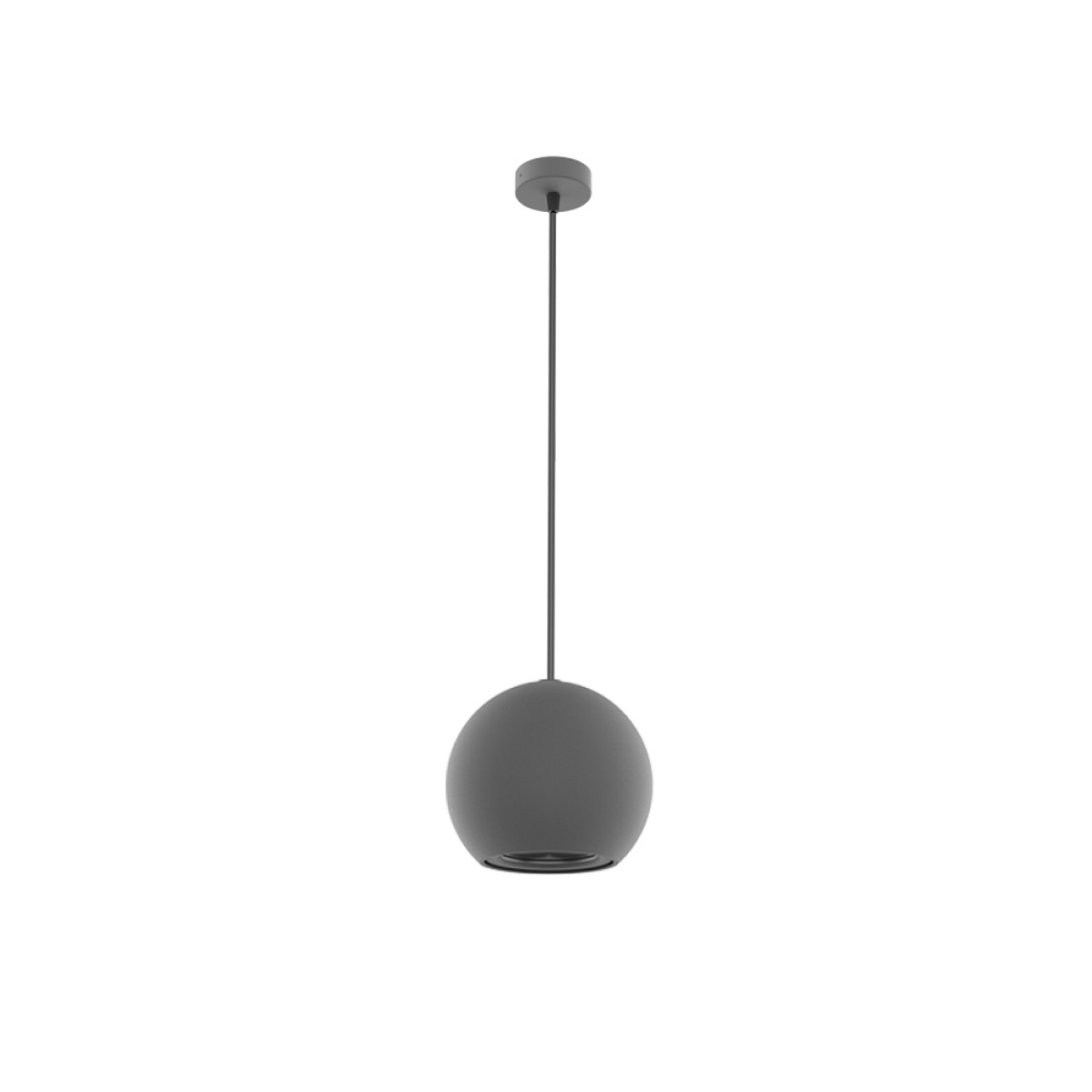

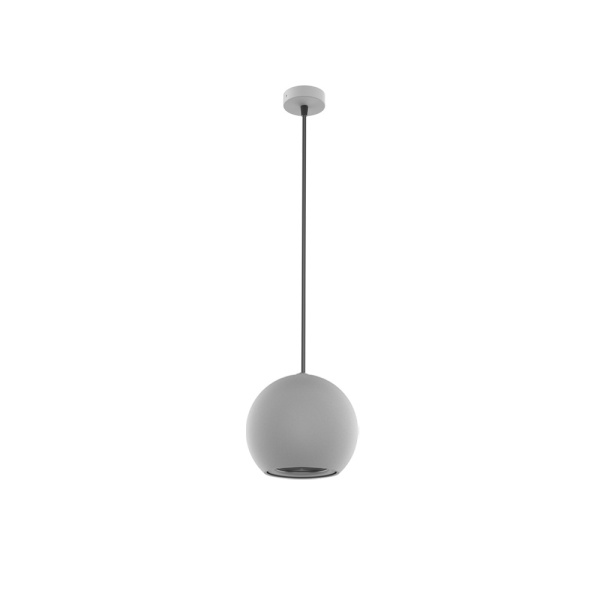

Suspended luminaire for indoor application, with downward light projection. Aluminum body with the possibility of painting in different colors. Ceiling rose round surface.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK03
IK03
IP
IP20
IP20
CRI
>80
>80
UGR
<22
<22
Class
I
I
Shape
Circular
Circular
Measures
Ø 160 x 125 x 130
Ø 160 x 125 x 130
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
45º
45º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
25000h
25000h
Light Source
GU10 AR111
GU10 AR111
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
G
G
Luminous flux Maintenance
L70
L70
