5069

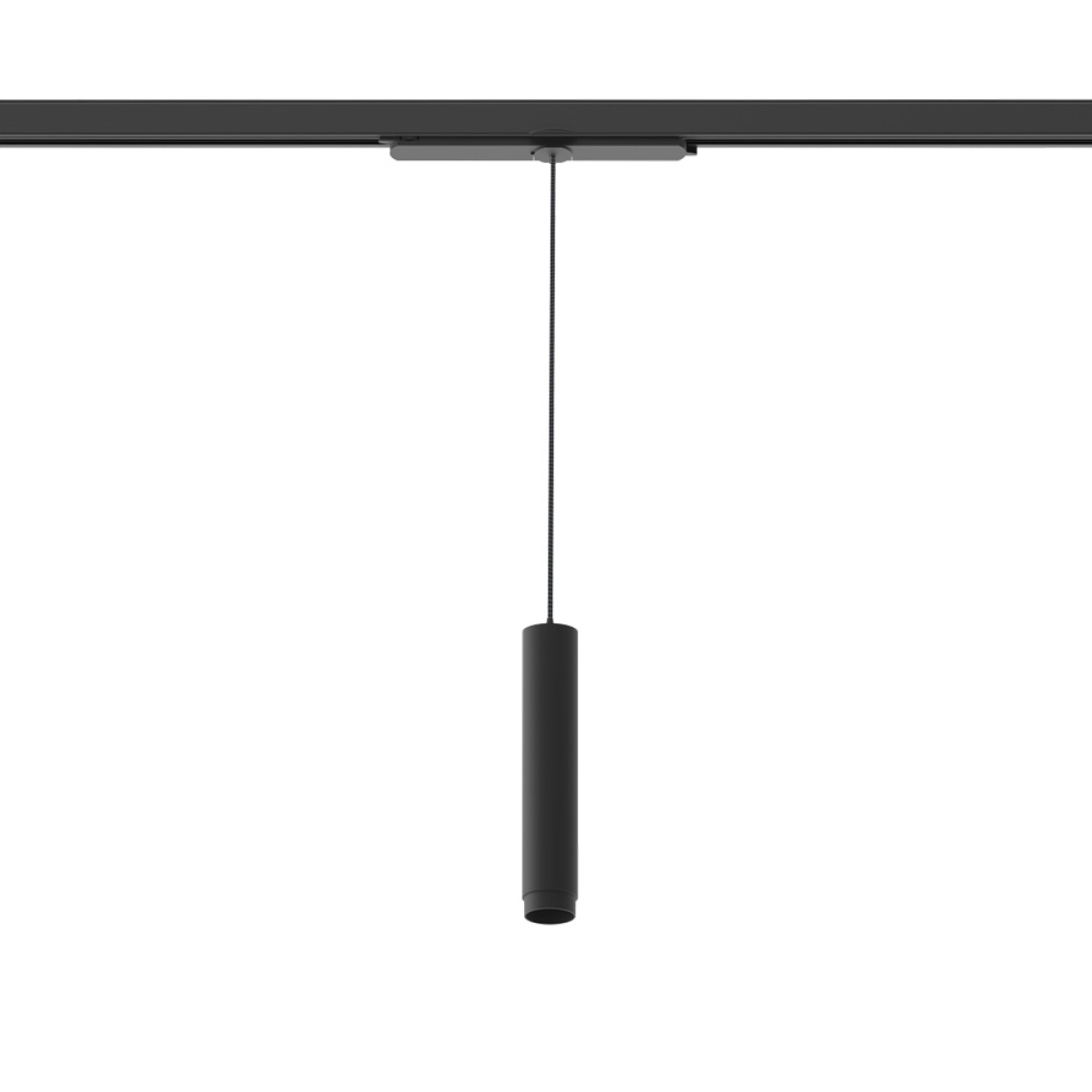

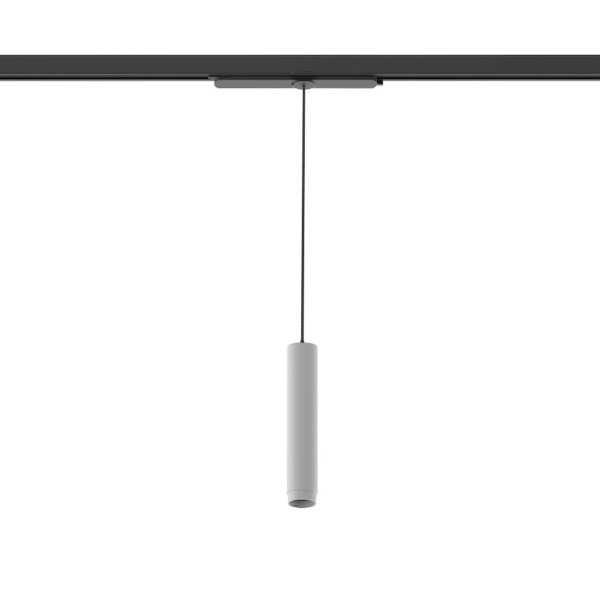

230V three-phase track pendant luminaire for indoor use, adjustable light projection via zoom. Aluminium body. Built-in driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK03
IK03
IP
IP20
IP20
CRI
90
90
Class
III
III
Shape
Circular
Circular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
Ø 46 x 250
Ø 46 x 250
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
15º to 36º
15º to 36º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Light Source
COB
COB
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
