5015

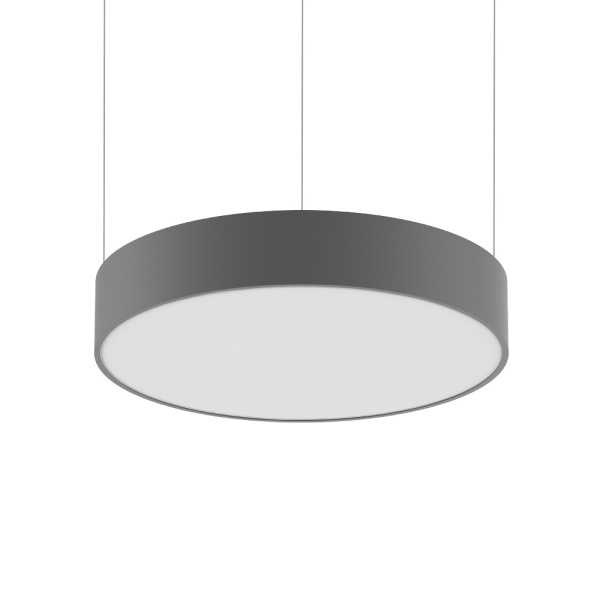

Suspended luminaire for indoor application, with downward light projection. Extruded aluminum body with the possibility of painting in different colors. Polycarbonate diffuser in opaline version. Incorporated driver.
General Information
Application
Indoor
Indoor
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK03
IK03
IP
IP20
IP20
CRI
80 | 90
80 | 90
Kit
Optional
Optional
UGR
<22
<22
Class
I
I
Shape
Circular
Circular
Driver
Incorporated
Incorporated
MacAdam
3
3
Measures
Ø250 x 80; Ø350 x 80; Ø450 x 120; Ø650 x 120; Ø950 x 120; Ø1250 x 120
Ø250 x 80; Ø350 x 80; Ø450 x 120; Ø650 x 120; Ø950 x 120; Ø1250 x 120
Standards
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-2:2012
IEC 60529
EN 50581:2012,
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
150º
150º
Directives
2012/19/UE REEE 2014/30/UE 2014/35/EU
2012/19/UE REEE 2014/30/UE 2014/35/EU
Average Life
72000h
72000h
Light Source
LED Module
LED Module
Light projection
Downward light projection
Downward light projection
Electrical Supply
220-240V AC~50/60Hz
220-240V AC~50/60Hz
Energy Efficiency
C
C
Luminous flux Maintenance
L90B10
L90B10
