4565

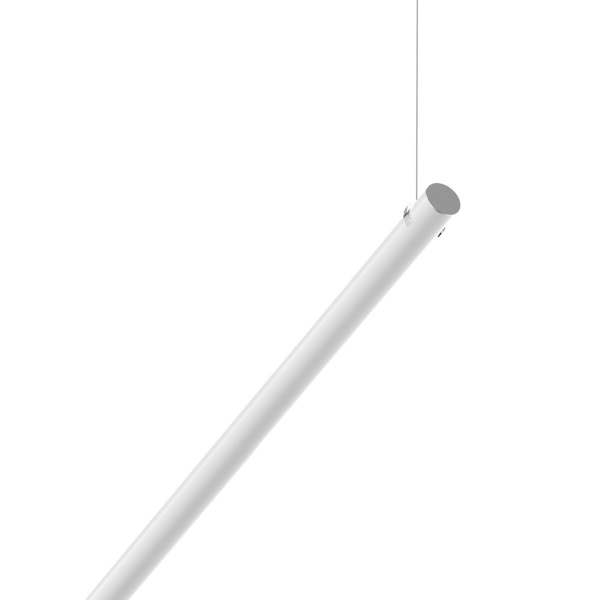

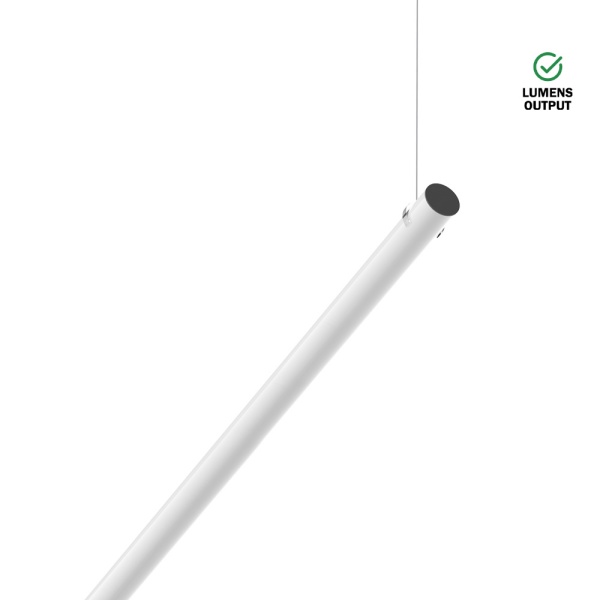

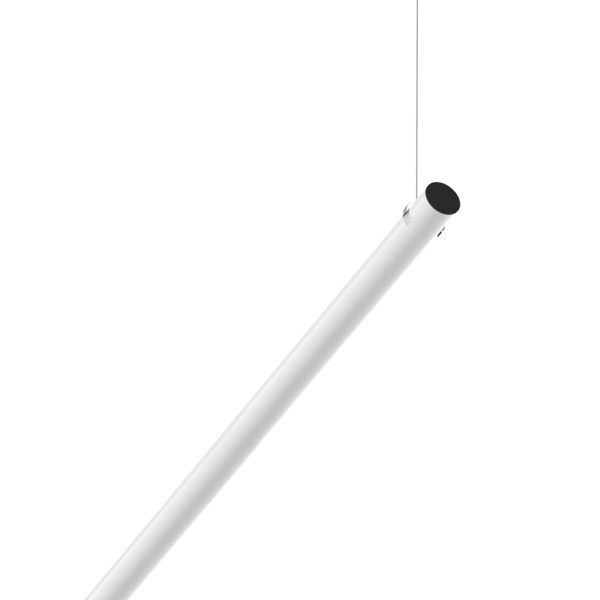

Horizontal suspended tubulair luminaire for ceiling application. 360º light projection. Polycarbonate diffuser and painted aluminium endcaps. Remote driver.
General Information
Application
Indoor
Indoor
General led color
Optional
Optional
Mounting Type
Ceiling Pendant
Ceiling Pendant
IK
IK07
IK07
IP
IP43
IP43
CRI
80
80
UGR
22
22
Class
III
III
Shape
Round
Round
Driver
Remote driver included, not integrated in the luminaire
Remote driver included, not integrated in the luminaire
MacAdam
3
3
Measures
Ø50 x L
Ø50 x L
Standards
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012
IEC 61000-3-2:2014
EN 61547:2009
EN 60598-1:2015
EN 60598-2-1:2012
IEC 60529
EN 50581:2012
IEC 61000-3-2:2014
EN 61547:2009
Beam Angle
100º
100º
Directives
2014/30/EU 2014/35/EU 2012/19/EU
2014/30/EU 2014/35/EU 2012/19/EU
Average Life
50000h
50000h
Light Source
LED Strip
LED Strip
Light projection
360º light projection
360º light projection
Electrical Supply
24V
24V
Energy Efficiency
E
E
Luminous flux Maintenance
L70B10
L70B10
